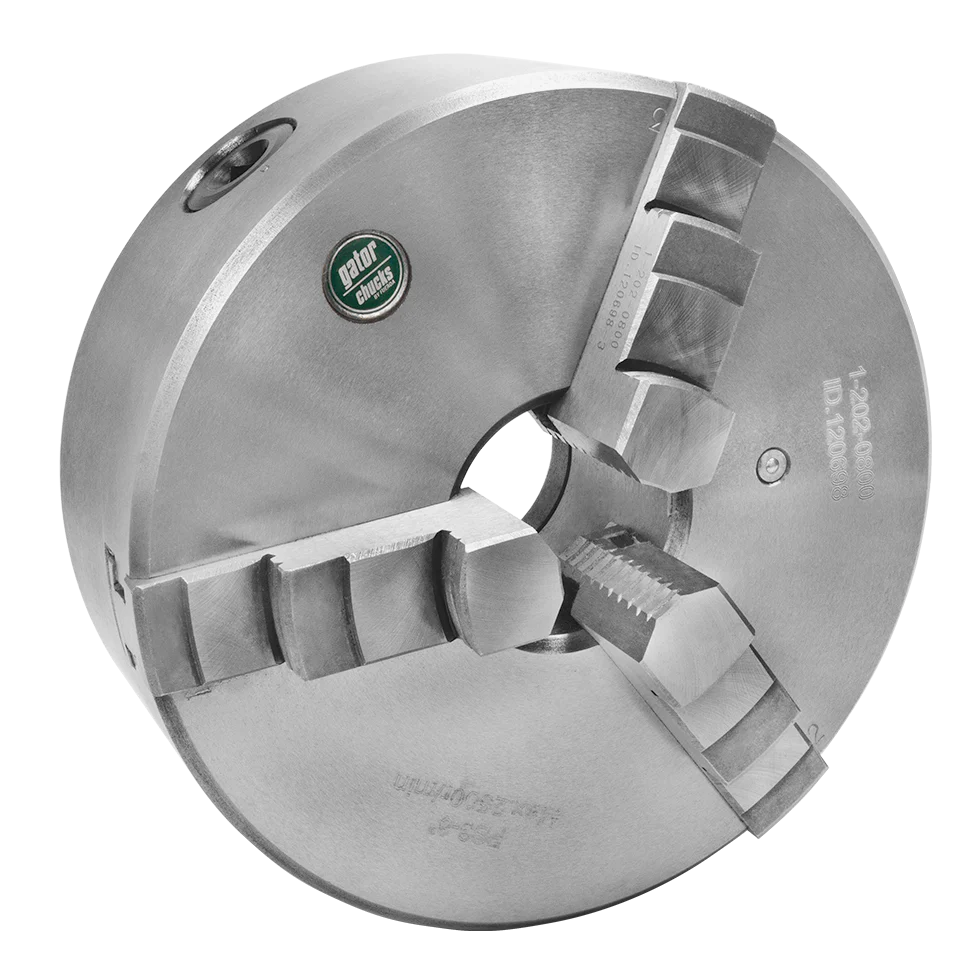

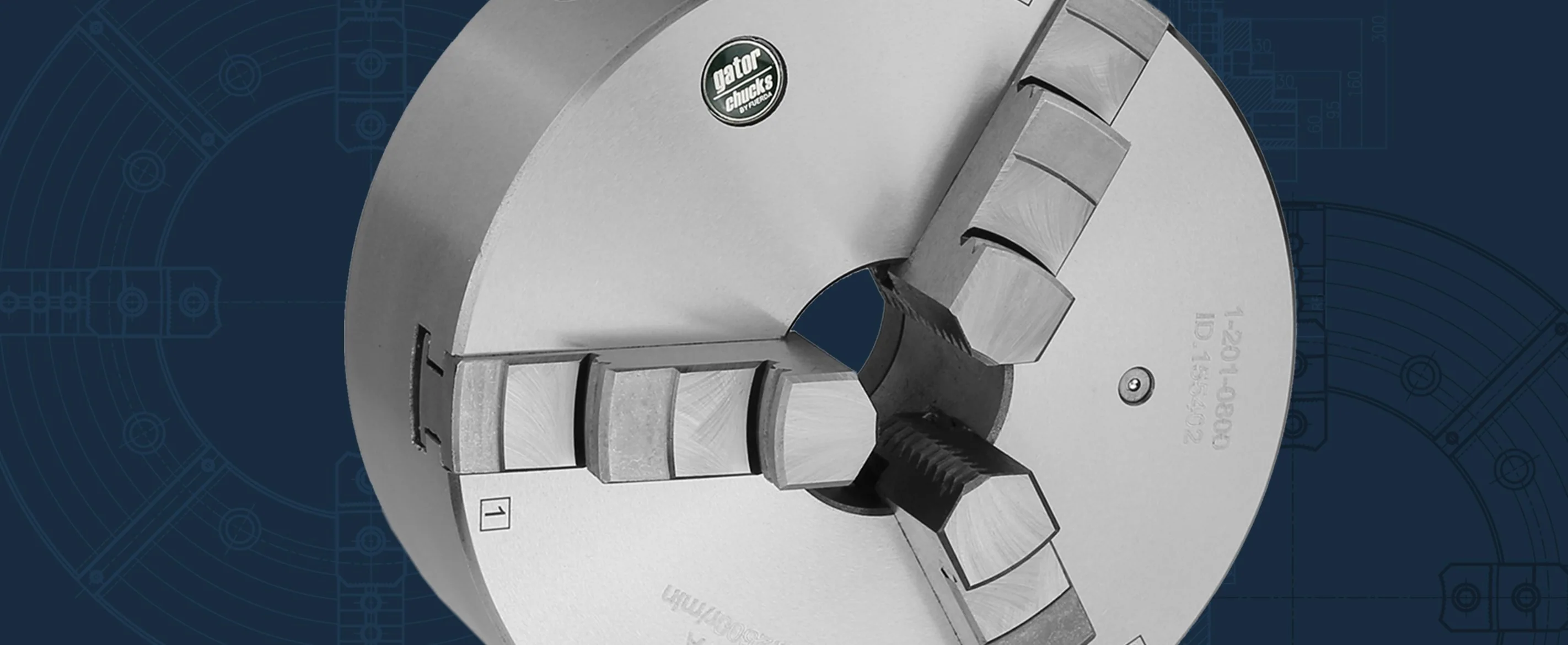

3-Jaw Scroll Chuck, 10" Cast-Iron Body, Plain Back, Hard Solid Jaws
Product Information
| Chuck Type | Scroll Self-Centering |

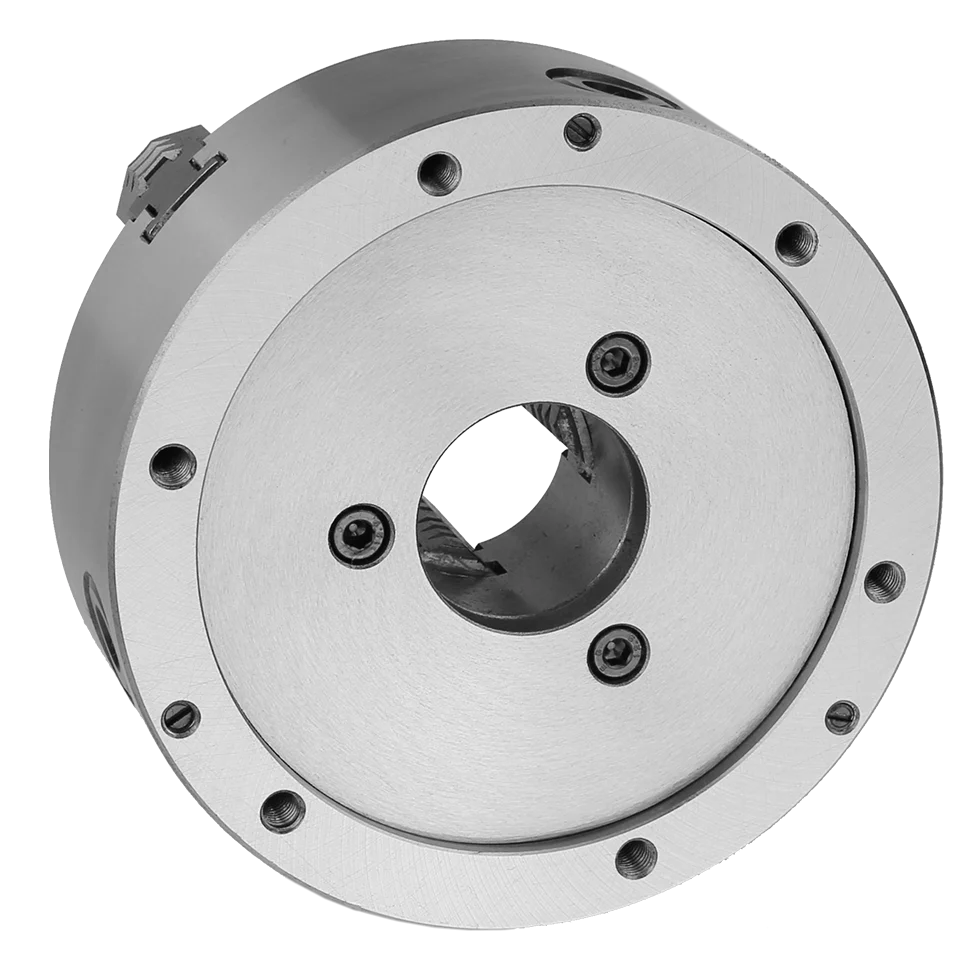

| Chuck Mount | Plain Back |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 10" |
| Thru-Hole (in) | 2.9921 |
| Gripping Range Min-Max (in) | 0.20 - 9.84 |
| Chuck T.I.R (in) | 0.0016 |
| Max RPM | 2000 |
| Material | Cast Iron |
| Jaws | 3 |
| Jaw Type | Hard Solid |
| Weight Gross (lbs) | 60.41 |
| Includes | 1 Set of Hard Solid ID & OD Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 10 |
| F (in) | 8.8189 |
| E (H7) (in) | 7.8740 |
| d Hole (in) | 2.9921 |
| C (in) | .1969 |
| H (in) | 3.347 |
| h1 (in) | 1.339 |
| M Mounting Bolt Thread |
M12x1.75 |
| M Mounting Bolt Length (in) |
1.18 |
| Mounting Bolt Qty |
6 |
Crossover to Other Brands
| Bison | 7-810-1000 |
Accessories
| Jaws | |
|---|---|
| ID Hard Solid Jaws (set) | OJ-PS3-250 |
| OD Hard Solid Jaws (set) | IJ-PS3-250 |
| Soft Solid Jaws (set) | SJ-PS3-250 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-315 |
| Scroll (1 pc) | SC-PS-250 |
| Pinion (1 pc) | PI-PS-250 |
| Pinion Screw (1 pc) | PH-P-250 |
| Chuck Mounting Bolts (1 pc) | MB-BS-250 |
| Adapters | |
| FM Machined Adapters A5 | FM-250A5 |
| FM Machined Adapters A6 | FM-250A6 |
| FM Machined Adapters A8 | FM-250A8 |
| FM Machined Adapters D5 | FM-250D5 |
| FM Machined Adapters D6 | FM-250D6 |
| FM Machined Adapters D8 | FM-250D8 |
| FM Machined Adapters L00 | FM-250L00 |
| FM Machined Adapters L0 | FM-250L0 |
| FM Machined Adapters L1 | FM-250L1 |
| SM Semi-Finished Adapters A5 | SM-250A5 |
| SM Semi-Finished Adapters A6 | SM-250A6 |
| SM Semi-Finished Adapters A8 | SM-250A8 |
| SM Semi-Finished Adapters D1-5 | SM-250D5 |
| SM Semi-Finished Adapters D1-6 | SM-250D6 |
| SM Semi-Finished Adapters D1-8 | SM-250D8 |
| SM Semi-Finished Adapters L00 | SM-250L00 |
| SM Semi-Finished Adapters L0 | SM-250L0 |
| SM Semi-Finished Adapters L1 | SM-250L1 |
| SM Semi-Finished Adapters 2-3/8-6UN-2B (T6) | SM-250T6 |
