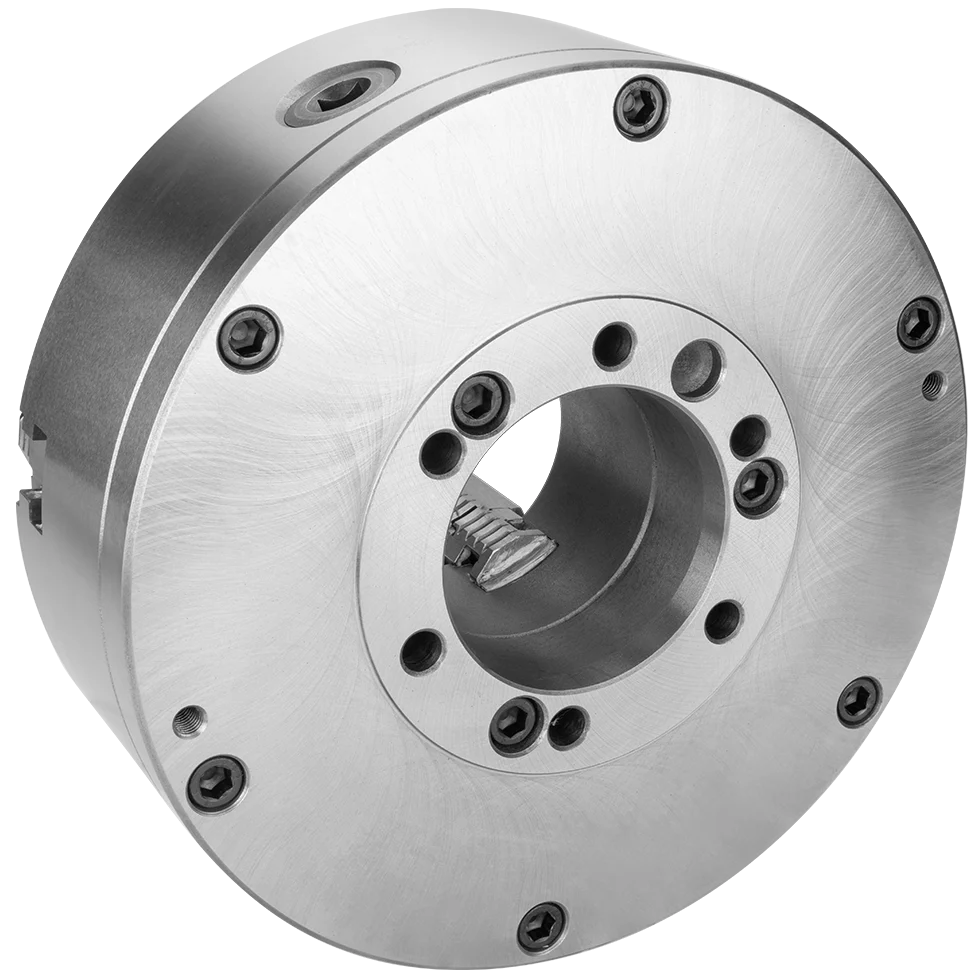

3-Jaw Scroll Chuck, 10" Cast-Iron Body, Direct Mount A2-5, 2 PC Hard Rev. Jaws
Product Information
| Title | 3-Jaw Scroll Chuck, 10" Cast-Iron Body, Direct Mount A2-5, 2 PC Hard Rev. Jaws |
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | A2-5 |
| Spindle Type | A2-5 |
| Chuck Dia (in) | 10" |
| Thru-Hole (in) | 2.9921 |
| Gripping Range Min-Max (in) | 0.20 - 9.84 |
| Chuck T.I.R (in) | 0.0016 |
| Max RPM | 2000 |
| Material | Cast Iron |
| Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 72.31 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Chuck Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 10" |
| Taper Size | A2-5 |
| d Hole (in) | 2.9921 |
| B (A2) (in) | 4.1260 |
| G (in) | 3.2505 |
| C (in) | 0.563 |
| H (in) | 4.0748 |
| h (in) | 2.1457 |
| M Mounting Bolt Thread (in) | 7/16-14 |
| M Mounting Bolt Length (in) | 4-1/8 |
| M Mounting Bolt Qty | 3 |
| All Chucks with A1 mount can be mounted on A1 spindles ONLY. All Chucks with A2 mount can be mounted on either A1 and A2 spindles. | |
Crossover to Other Brands
| Bison | 7-801-1015 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS3-250 |
| Hard Master Jaws (set) | MJ-PS3-250 |
| Soft Top Jaws (set) | STJ-PS1-250 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-315 |
| Scroll (1 pc) | SC-PS-250 |
| Pinion (1 pc) | PI-PS-250 |
| Pinion Screw (1 pc) | PH-P-250 |
| Chuck Mounting Bolts (1 pc) | BA-10-05 |
