Product Information

Jaw Type	Soft Top Jaws

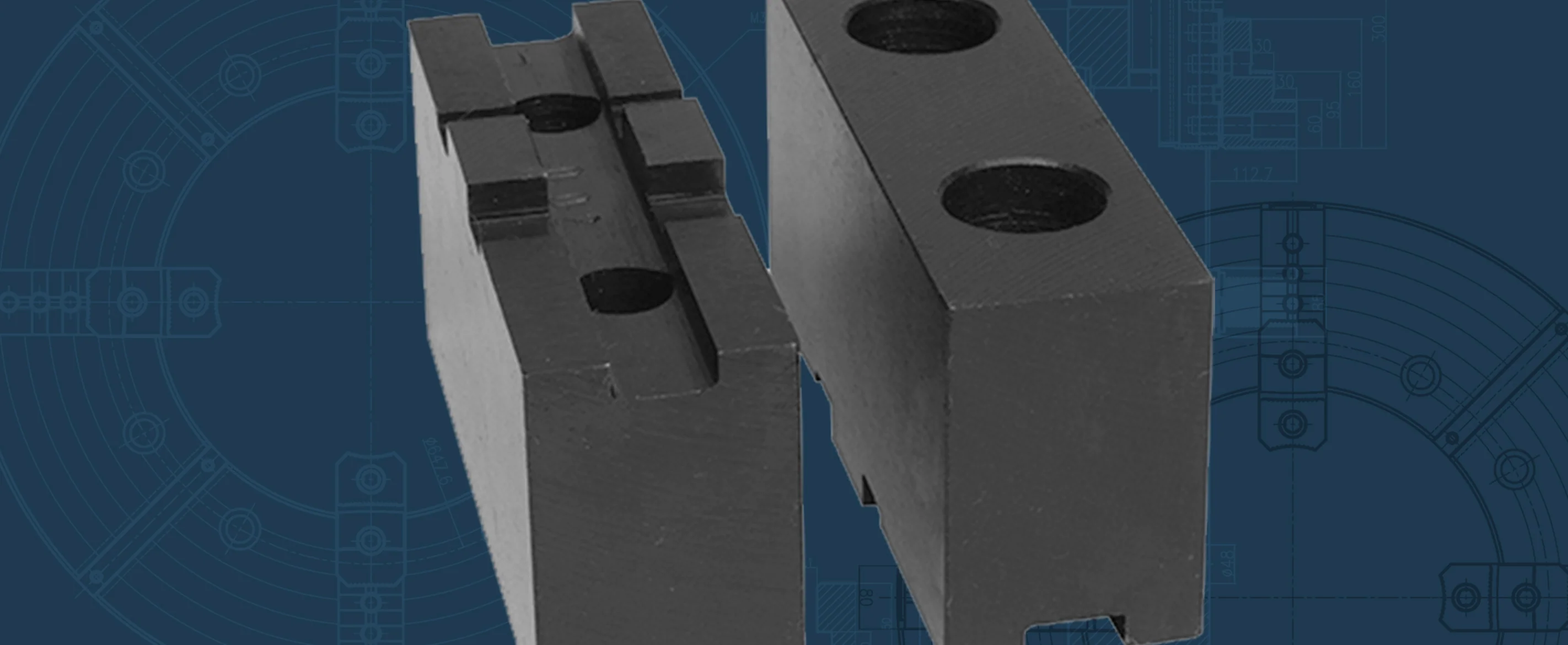

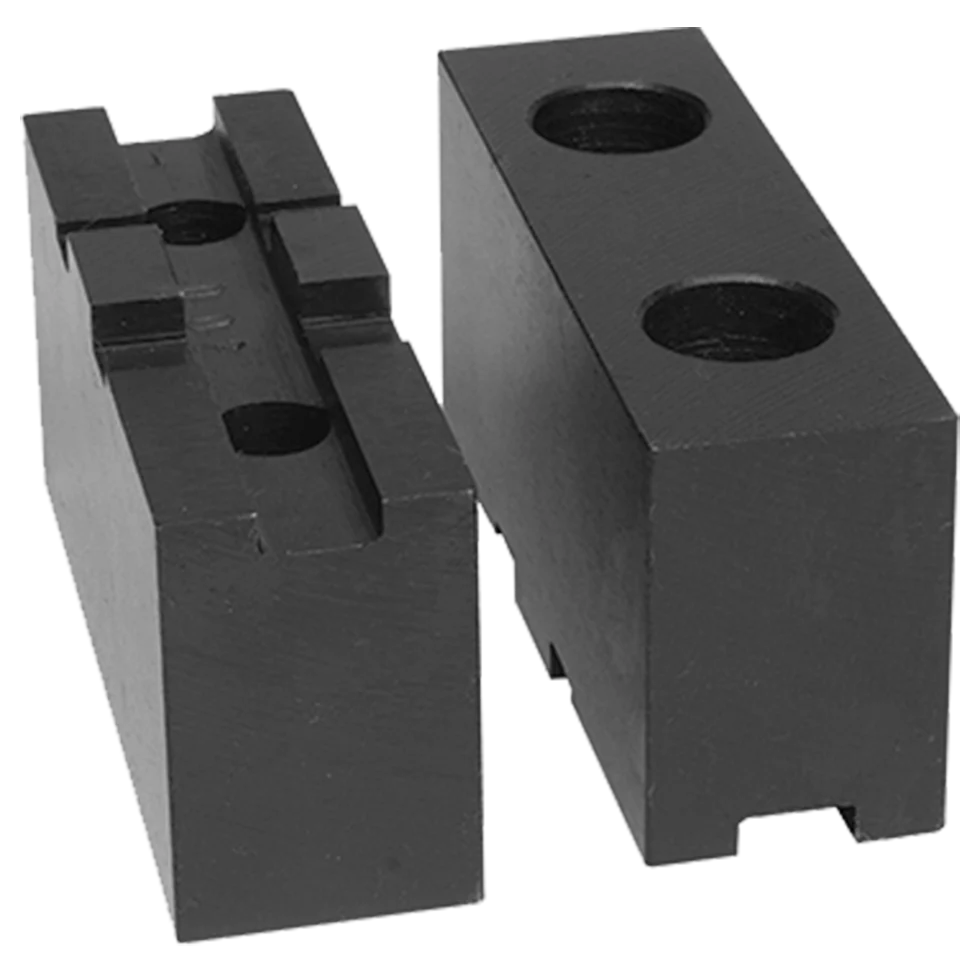

Title	Soft Top Jaws for 6 Jaw Chucks - 6"
Chuck Type	6-Jaw / Scroll
Chuck Dia (in)	6-1/4
Jaw Mount	Tongue & Groove
Jaw Material	Steel
Weight Gross (lbs)	1.01
Includes	1pc. Soft Top Jaw

Product Dimensions

Chuck Dia (in)	6-1/4
Chuck Type	Scroll Self-Centering
A (in)	3.071
B (in)	0.984
C (in)	1.634
D (in)	.3129
E (in)	.8286
F (in)	1-1/2
G (in)	.500
H (in)	1.339
I (in)	.1260
J (in)	.158
K (in)	1.14
Top Jaw Mounting Bolt Thread Size M (in)	3/8-16
