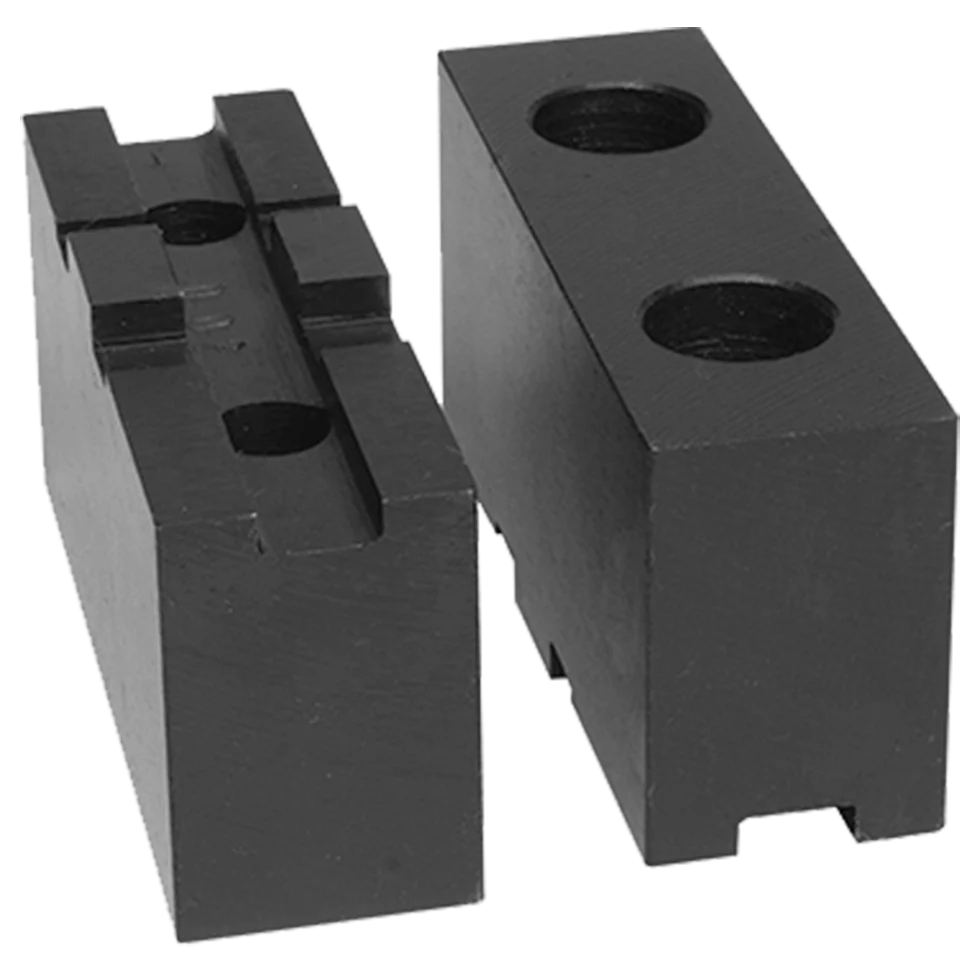

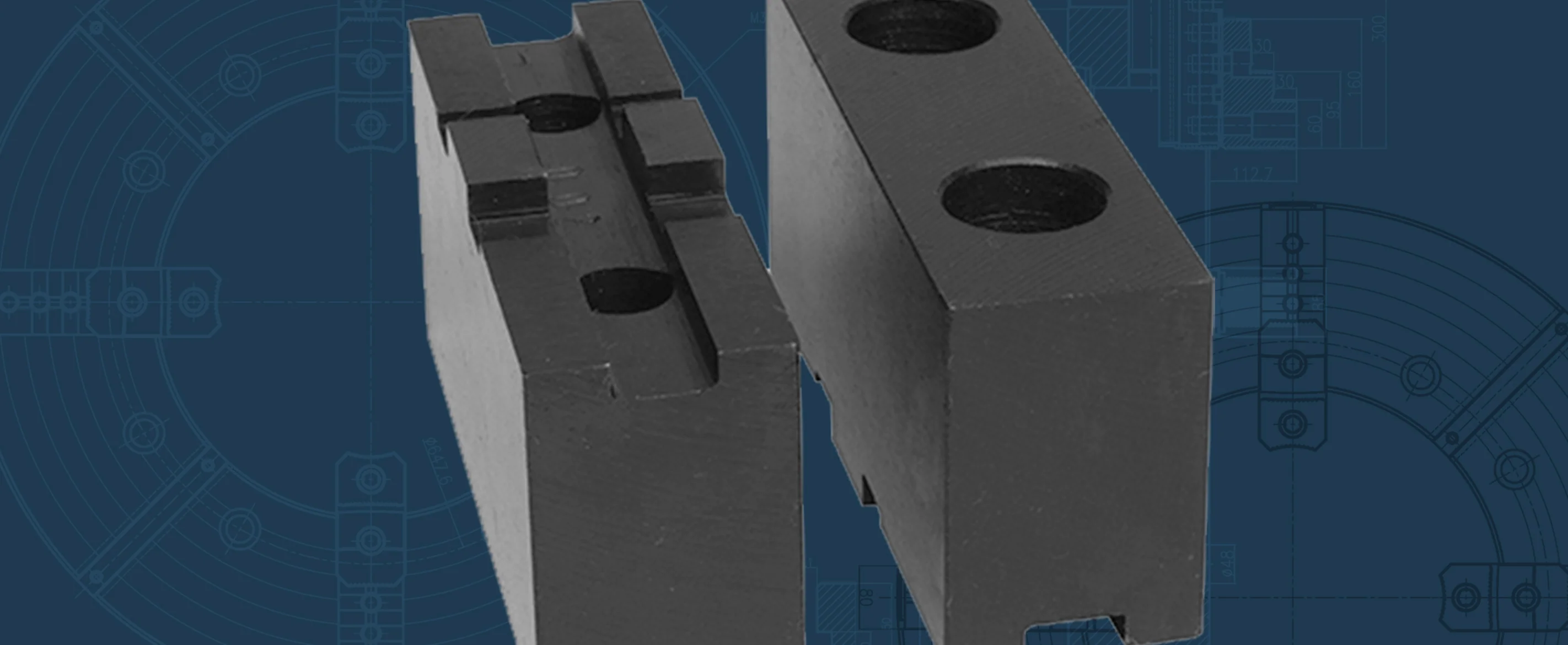

Soft Top Jaws for 6 Jaw Chucks 5"
Product Information
| Jaw Type | Soft Top Jaws |
| Title | Soft Top Jaws for 6 Jaw Chucks - 5" |
| Chuck Type | 6-Jaw / Scroll |
| Chuck Dia (in) | 5 |
| Jaw Mount | Tongue & Groove |
| Jaw Material | Steel |
| Weight Gross (lbs) | 0.66 |
| Includes | 1pc. Soft Top Jaw |
Product Dimensions
| Chuck Dia (in) | 5 |
| Chuck Type | Scroll Self-Centering |
| A (in) | 2.520 |
| B (in) | 0.866 |
| C (in) | 1.520 |
| D (in) | .3129 |
| E (in) | .5910 |
| F (in) | 1-1/4 |
| G (in) | .500 |
| H (in) | 0.984 |
| I (in) | .1260 |
| J (in) | .158 |
| K (in) | 1.02 |
| Top Jaw Mounting Bolt Thread Size M (in) | 5/16-8 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Soft Top Jaws for 6 Jaw Chucks 5"
Soft Top Jaws for 6 Jaw Chucks 5"
Product Information
| Jaw Type | Soft Top Jaws |
| Title | Soft Top Jaws for 6 Jaw Chucks - 5" |
| Chuck Type | 6-Jaw / Scroll |
| Chuck Dia (in) | 5 |
| Jaw Mount | Tongue & Groove |
| Jaw Material | Steel |
| Weight Gross (lbs) | 0.66 |
| Includes | 1pc. Soft Top Jaw |
Product Dimensions
| Chuck Dia (in) | 5 |
| Chuck Type | Scroll Self-Centering |
| A (in) | 2.520 |
| B (in) | 0.866 |
| C (in) | 1.520 |
| D (in) | .3129 |
| E (in) | .5910 |
| F (in) | 1-1/4 |
| G (in) | .500 |
| H (in) | 0.984 |
| I (in) | .1260 |
| J (in) | .158 |
| K (in) | 1.02 |
| Top Jaw Mounting Bolt Thread Size M (in) | 5/16-8 |
$0.01
Soft Top Jaws for 6 Jaw Chucks 5"—
$0.01
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Product Information
| Jaw Type | Soft Top Jaws |
| Title | Soft Top Jaws for 6 Jaw Chucks - 5" |
| Chuck Type | 6-Jaw / Scroll |
| Chuck Dia (in) | 5 |
| Jaw Mount | Tongue & Groove |
| Jaw Material | Steel |
| Weight Gross (lbs) | 0.66 |
| Includes | 1pc. Soft Top Jaw |
Product Dimensions
| Chuck Dia (in) | 5 |
| Chuck Type | Scroll Self-Centering |
| A (in) | 2.520 |
| B (in) | 0.866 |
| C (in) | 1.520 |
| D (in) | .3129 |
| E (in) | .5910 |
| F (in) | 1-1/4 |
| G (in) | .500 |
| H (in) | 0.984 |
| I (in) | .1260 |
| J (in) | .158 |
| K (in) | 1.02 |
| Top Jaw Mounting Bolt Thread Size M (in) | 5/16-8 |
