Product Information

Jaw Type	Soft Top Jaws

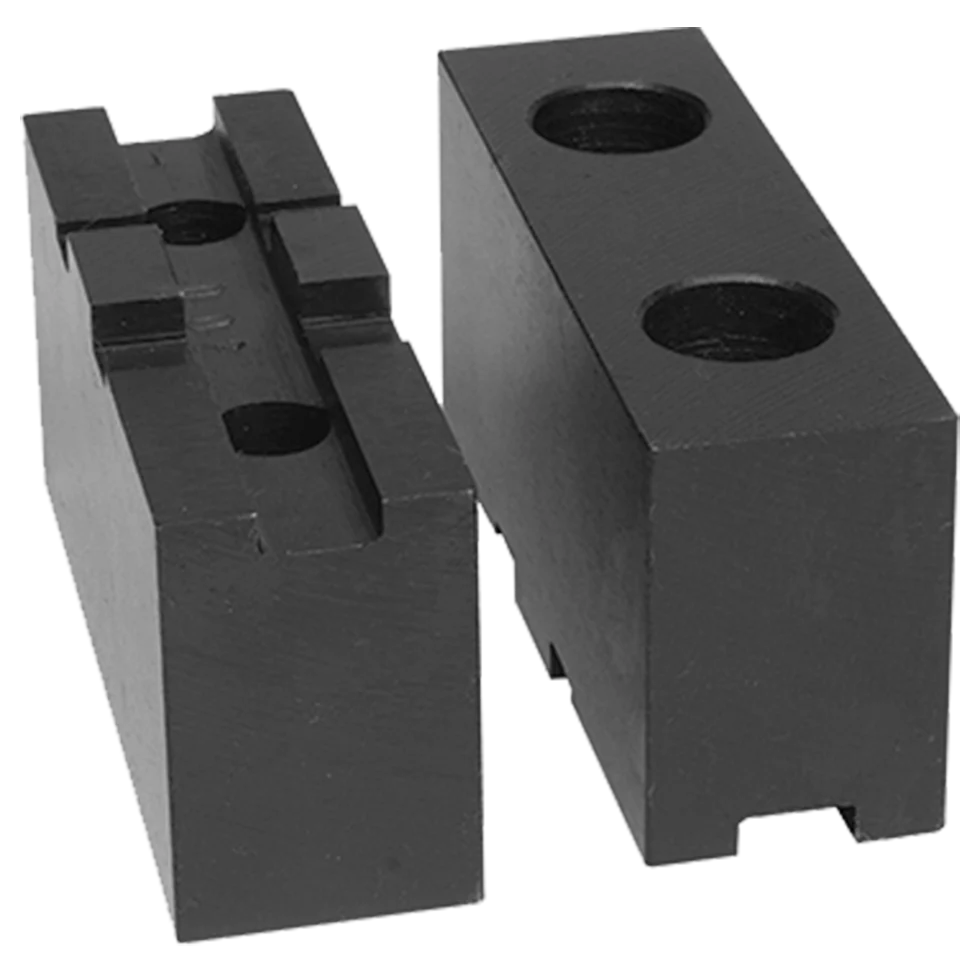

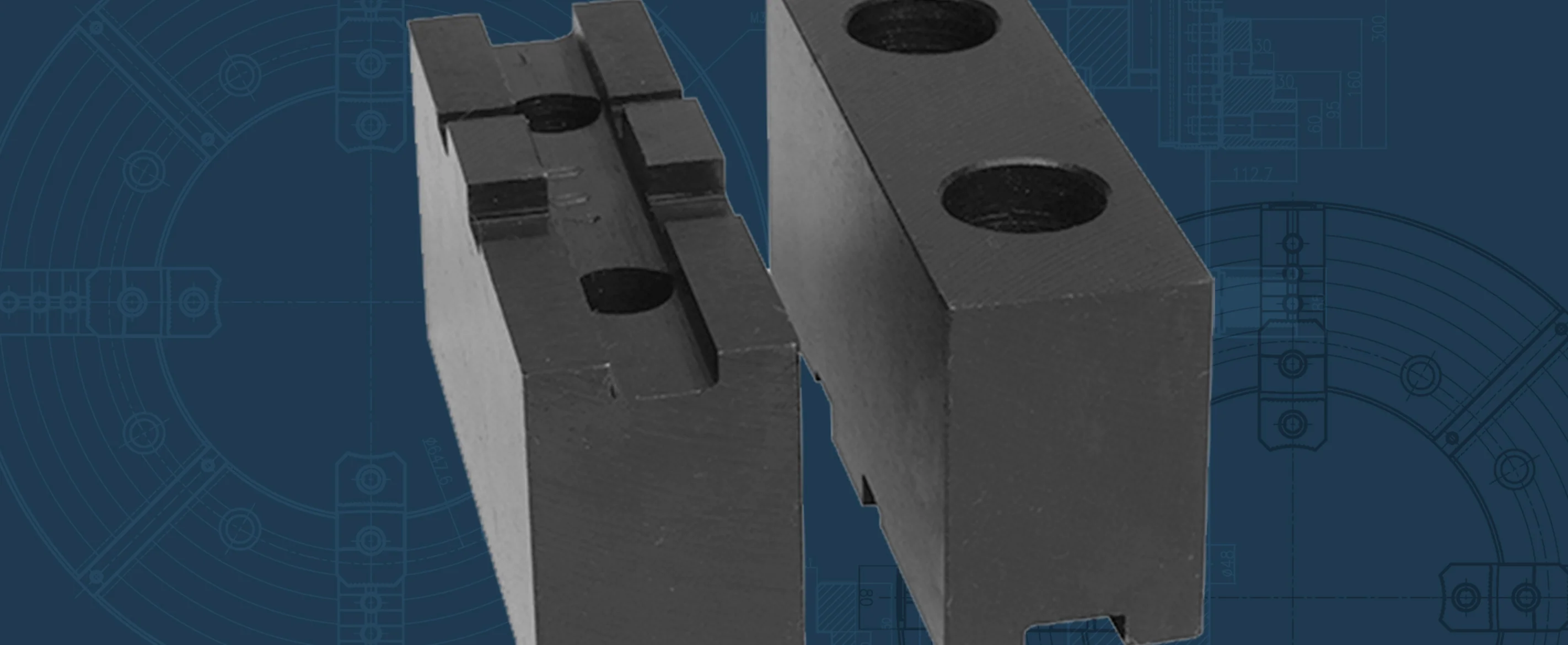

Title	Soft Top Jaws for 6 Jaw Chucks - 10"
Chuck Type	6-Jaw / Scroll
Chuck Dia (in)	10
Jaw Mount	Tongue & Groove
Jaw Material	Steel
Weight Gross (lbs)	2.54
Includes	1pc. Soft Top Jaw

Product Dimensions

Chuck Dia (in)	10
Chuck Type	Scroll Self-Centering
A (in)	4.173
B (in)	1.280
C (in)	2.028
D (in)	.5000
E (in)	1.0827
F (in)	2-1/8
G (in)	.750
H (in)	1.772
I (in)	.1260
J (in)	.158
K (in)	1.50
Top Jaw Mounting Bolt Thread Size M (in)	1/2-13
