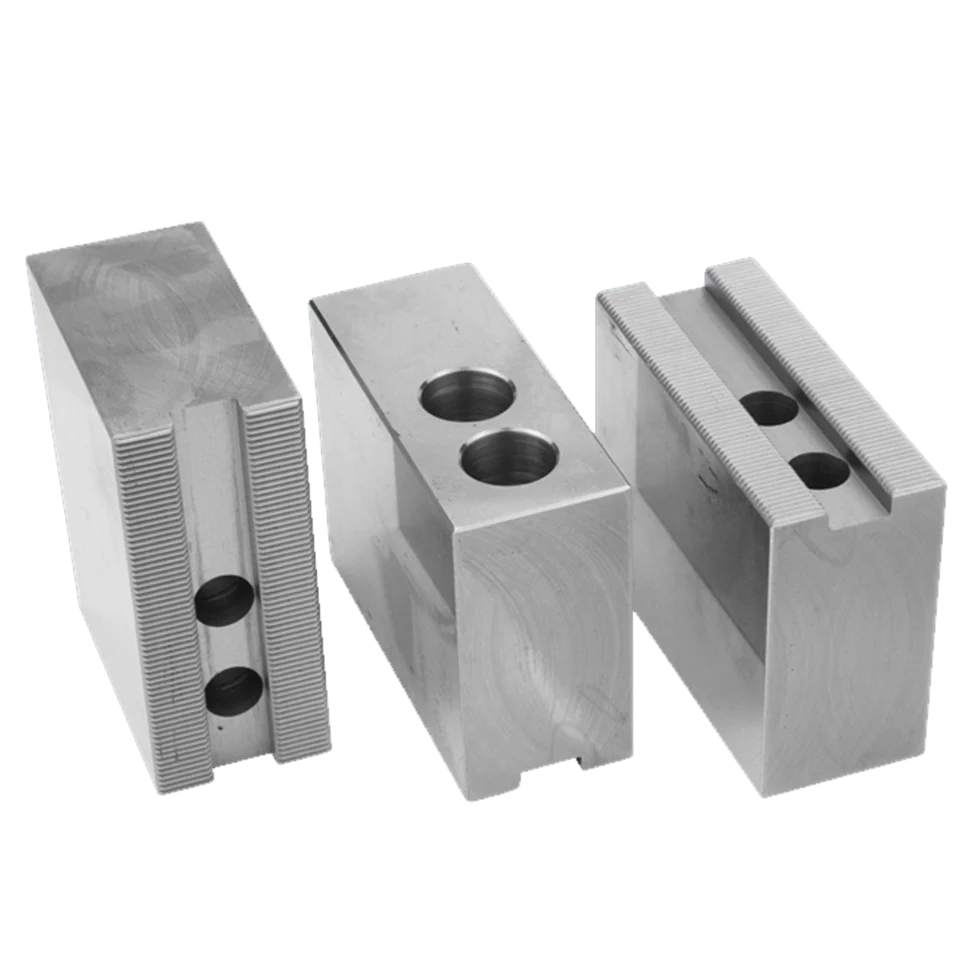

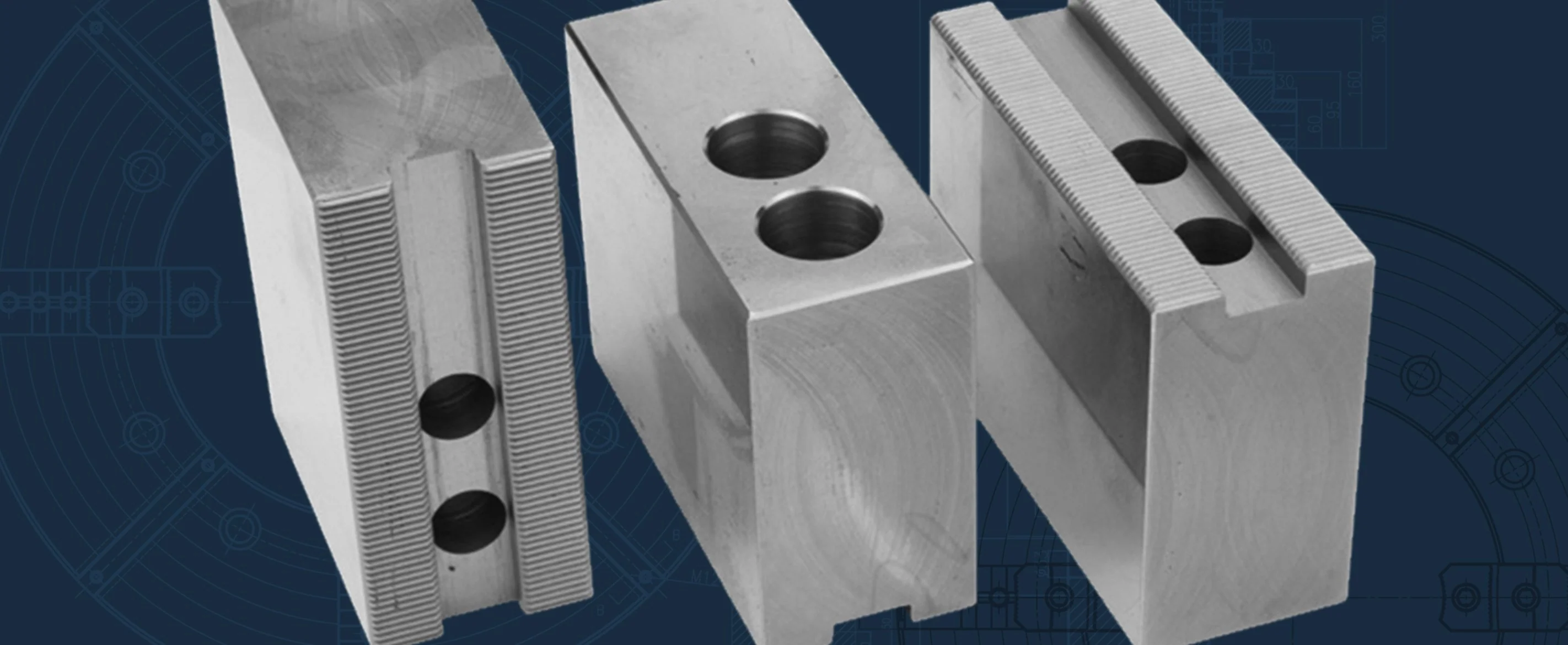

Soft Top Jaws for 6" Chuck, Flat, Steel, 3Hx3Lx1.25W
Product Information
| Jaw Type | Soft Top Jaw, Flat |
| Chuck Type | Power Chuck |
| Chuck Dia (in) | 6 |
| Jaw Mount | 1.5mm x 60° Serration |
| Jaw Material | Soft Steel |
| Jaw Mounting Bolt Thread Size (mm) | M10 |
| Includes | 3pc. Soft Top Jaw Set |
Product Dimensions
| Chuck Dia (in) | 6 |
| Chuck Type | Power Chuck |
| Groove Width E (in) | 0.472 |
| Center to Center D (in) | 0.787 |
| Hole to Front J (in) | 1.625 |
| Jaw Height H (in) | 3.00 |
| Jaw Length L (in) | 3.000 |
| Jaw Width W (in) | 1.250 |
| Jaw Mounting Bolt Thread Size (mm) | M10 |
