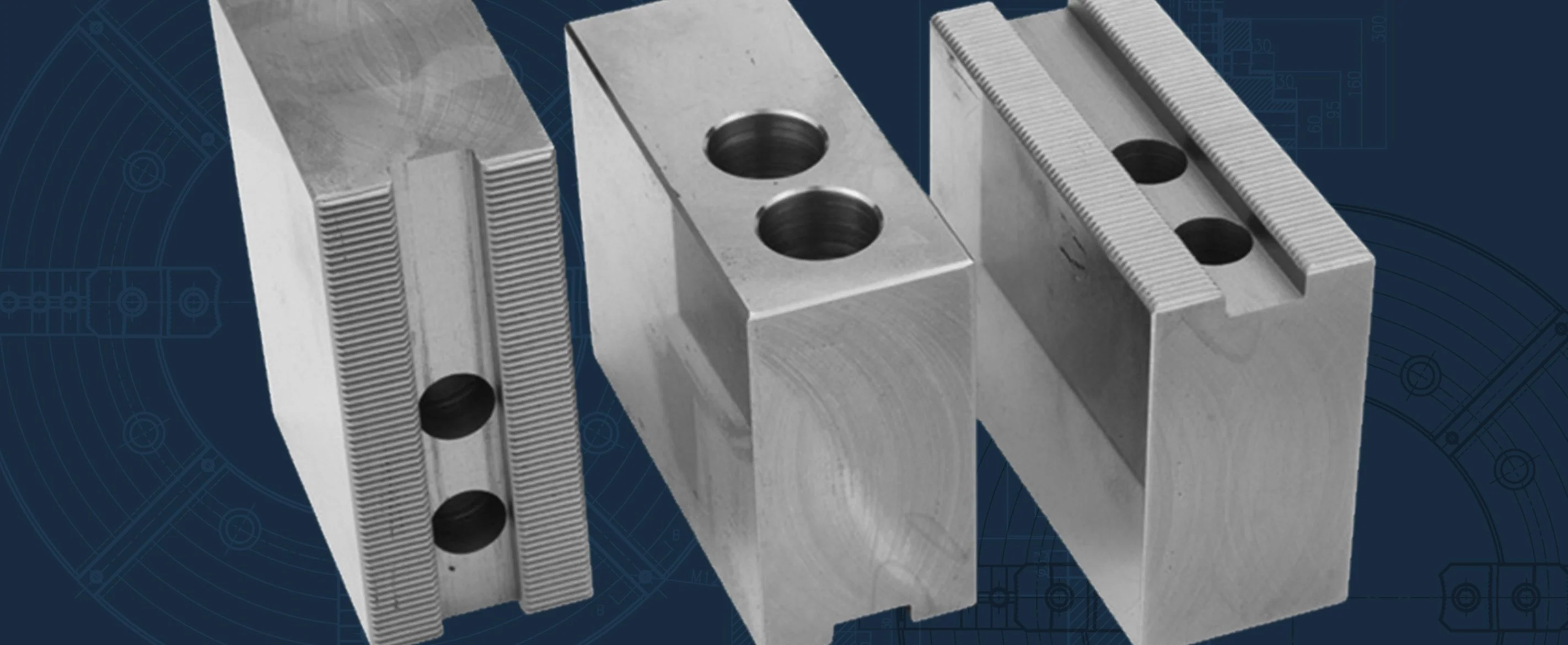

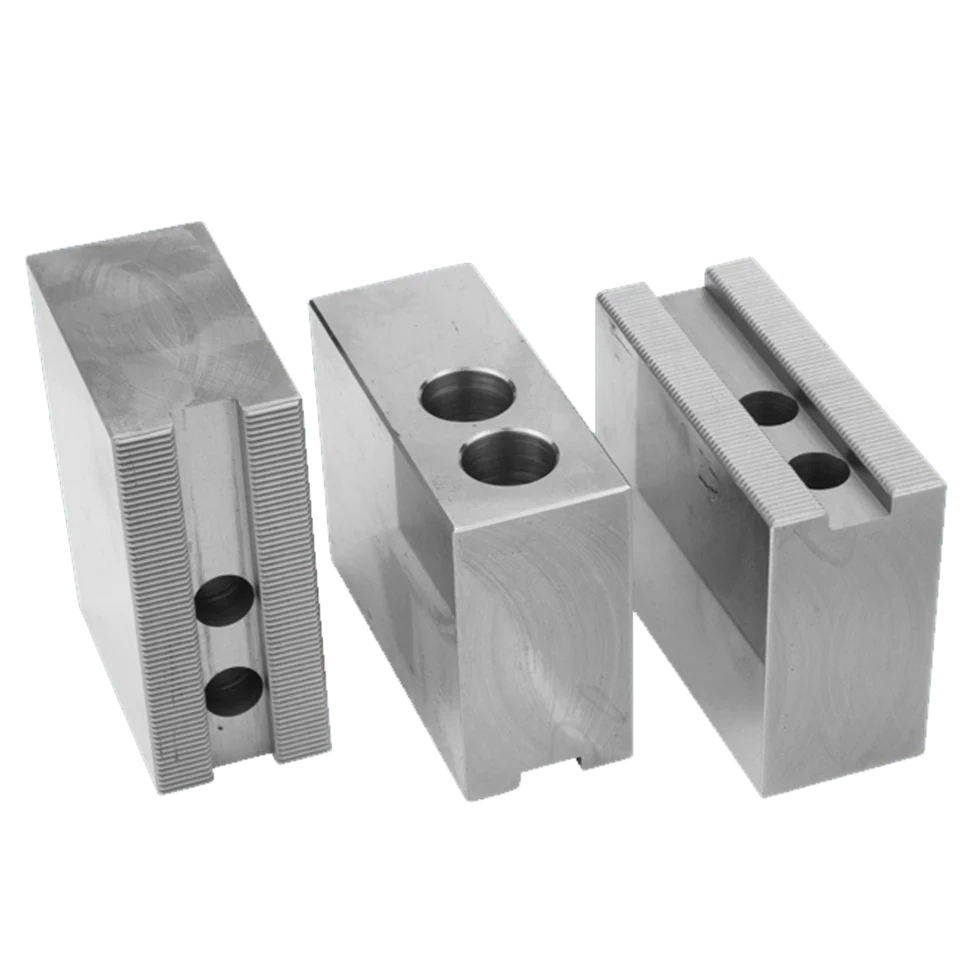

Soft Top Jaws for 21" Chuck, Flat, Steel, 4Hx7Lx2.5W
Product Information
| Jaw Type | Soft Top Jaw, Flat |
| Chuck Type | Power Chuck |
| Chuck Dia (in) | 21 |
| Jaw Mount | 3mm x 60° Serration |
| Jaw Material | Soft Steel |
| Jaw Mounting Bolt Thread Size (mm) | M20 |
| Includes | 3pc. Soft Top Jaw Set |
Product Dimensions
| Chuck Dia (in) | 21 |
| Chuck Type | Power Chuck |
| Groove Width E (in) | 0.984 |
| Center to Center D (in) | 2.360 |
| Hole to Front J (in) | 3.070 |
| Jaw Height H (in) | 2.500 |
| Jaw Length L (in) | 7.000 |
| Jaw Width W (in) | 4.000 |
| Jaw Mounting Bolt Thread Size (mm) | M20 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Soft Top Jaws for 21" Chuck, Flat, Steel, 4Hx7Lx2.5W
Soft Top Jaws for 21" Chuck, Flat, Steel, 4Hx7Lx2.5W
Product Information
| Jaw Type | Soft Top Jaw, Flat |
| Chuck Type | Power Chuck |
| Chuck Dia (in) | 21 |
| Jaw Mount | 3mm x 60° Serration |
| Jaw Material | Soft Steel |
| Jaw Mounting Bolt Thread Size (mm) | M20 |
| Includes | 3pc. Soft Top Jaw Set |
Product Dimensions
| Chuck Dia (in) | 21 |
| Chuck Type | Power Chuck |
| Groove Width E (in) | 0.984 |
| Center to Center D (in) | 2.360 |
| Hole to Front J (in) | 3.070 |
| Jaw Height H (in) | 2.500 |
| Jaw Length L (in) | 7.000 |
| Jaw Width W (in) | 4.000 |
| Jaw Mounting Bolt Thread Size (mm) | M20 |
