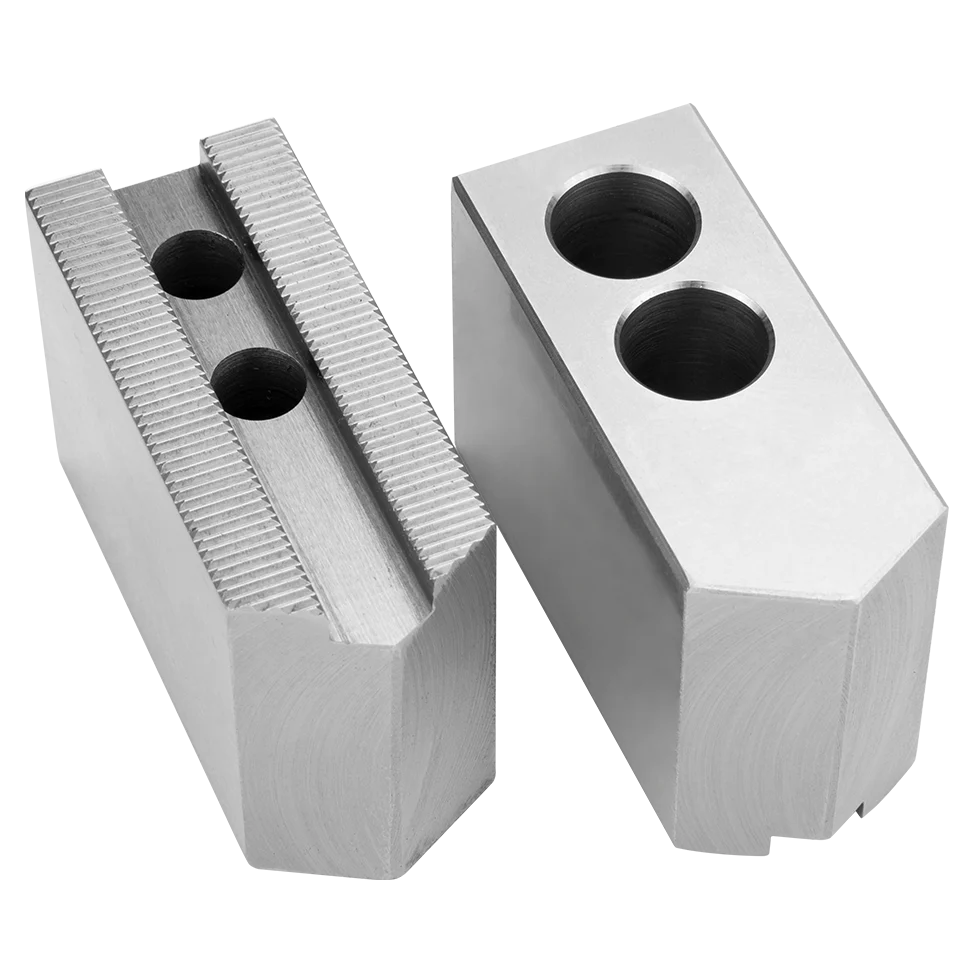

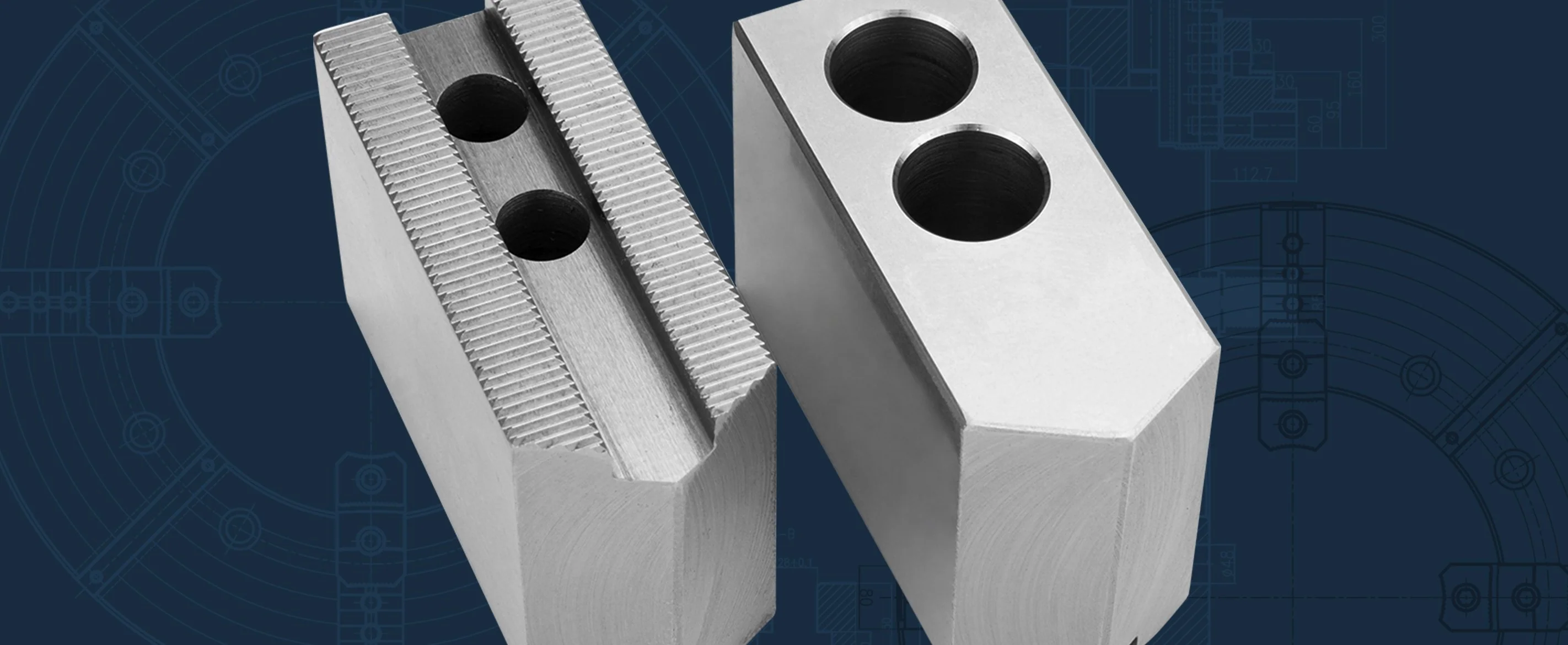

Soft Top Jaws for 15" Chuck, Pointed, Steel, 2.5Hx7.5Lx2.5W
Product Information
| Jaw Type | Soft Top Jaw, Pointed |
| Chuck Type | Power Chuck |
| Chuck Dia (in) | 15 |
| Jaw Mount | 1.5mm x 60° Serration |
| Jaw Material | Soft Steel |
| Jaw Mounting Bolt Thread Size (mm) | M20 |
| Includes | 3pc. Soft Top Jaw Set |
Product Dimensions
| Chuck Dia (in) | 15 |
| Chuck Type | Power Chuck |
| Groove Width E (in) | 0.866 |
| Center to Center D (in) | 1.690 |
| Hole to Front J (in) | 4.437 |
| Jaw Height H (in) | 2.50 |
| Jaw Length L (in) | 7.50 |
| Jaw Width W (in) | 2.50 |
| Jaw Mounting Bolt Thread Size (mm) | M20 |
