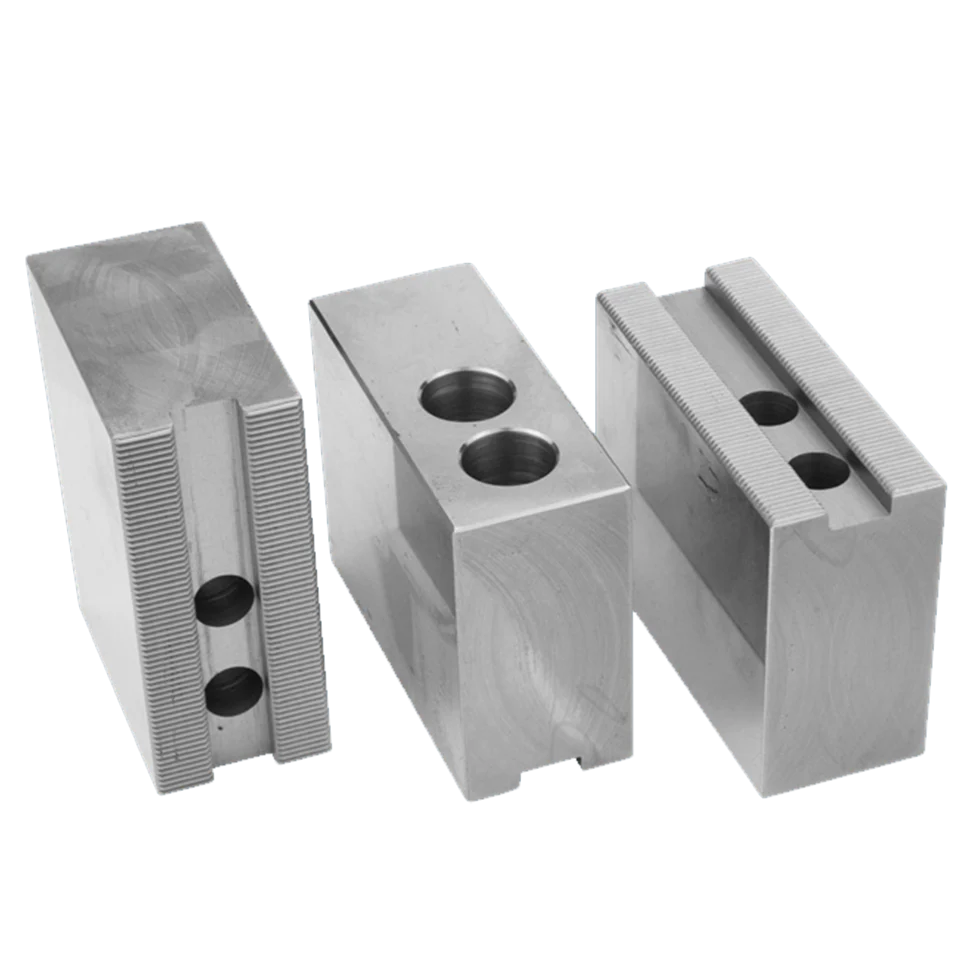

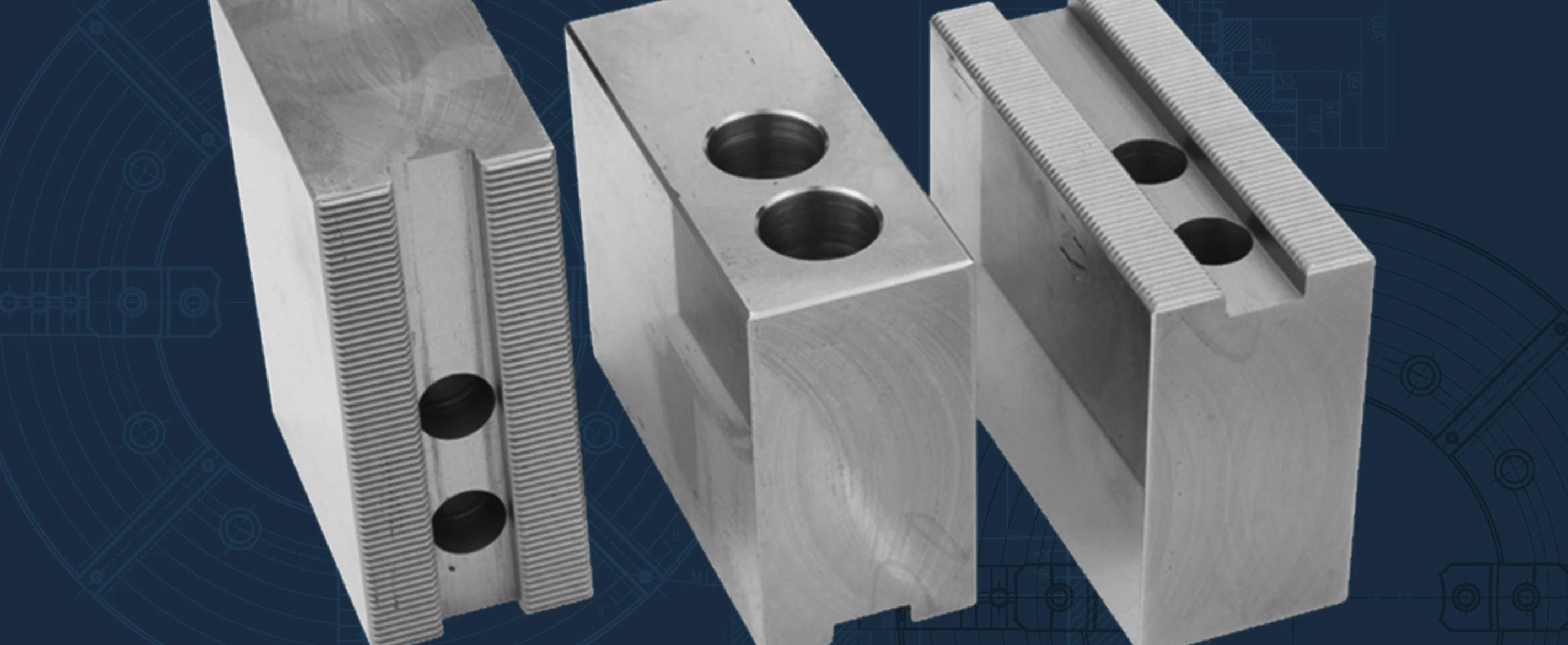

Soft Top Jaws for 12" Chuck, Flat, Steel, 2Hx5.5Lx2W
Product Information
| Jaw Type | Soft Top Jaw, Flat |
| Chuck Type | Power Chuck |
| Chuck Dia (in) | 12 |
| Jaw Mount | 1.5mm x 60° Serration |
| Jaw Material | Soft Steel |
| Jaw Mounting Bolt Thread Size (in/mm) | 5/8 (M16) |
| Includes | 3pc. Soft Top Jaw Set |
Product Dimensions
| Chuck Dia (in) | 12 |
| Chuck Type | Power Chuck |
| Groove Width E (in) | 0.827 |
| Center to Center D (in) | 1.181 |
| Hole to Front J (in) | 3.125 |
| Jaw Height H (in) | 2.00 |
| Jaw Length L (in) | 5.50 |
| Jaw Width W (in) | 2.00 |
| Jaw Mounting Bolt Thread Size (in/mm) | 5/8 (M16) |
