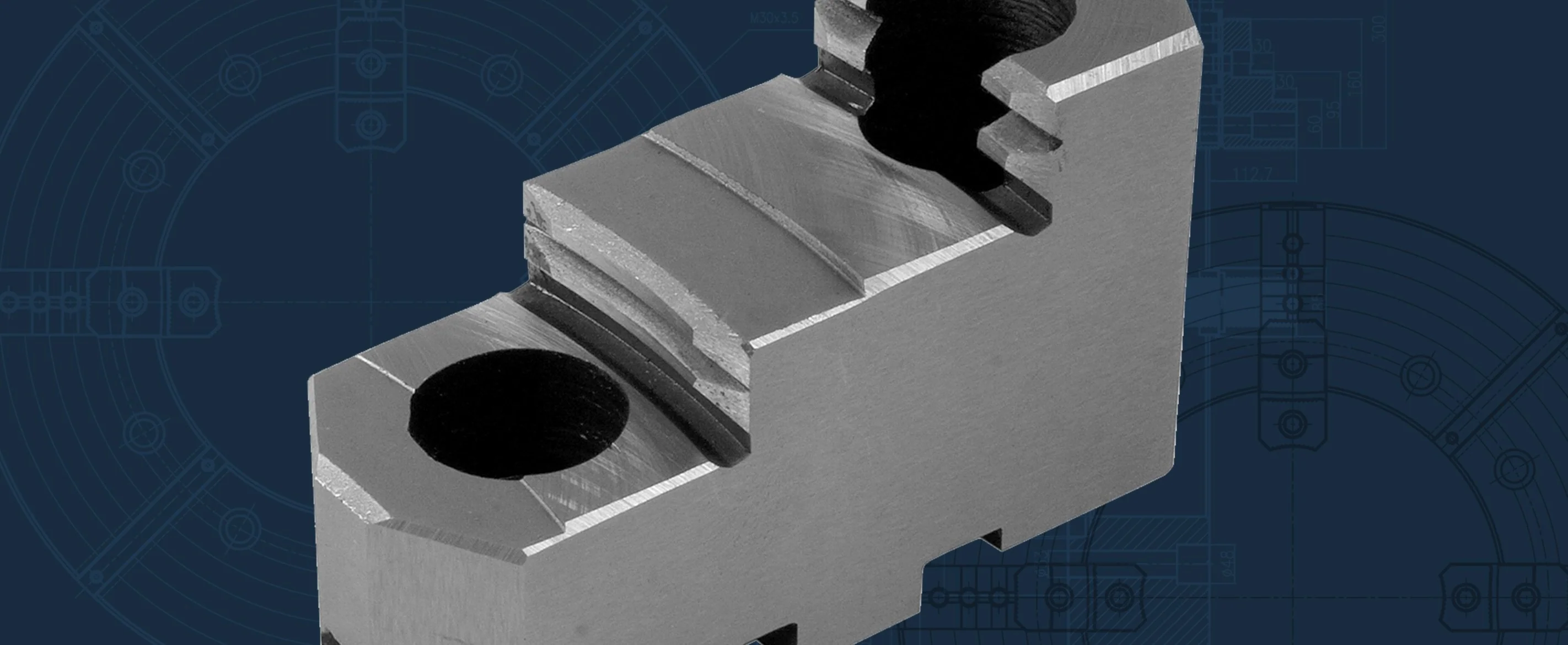

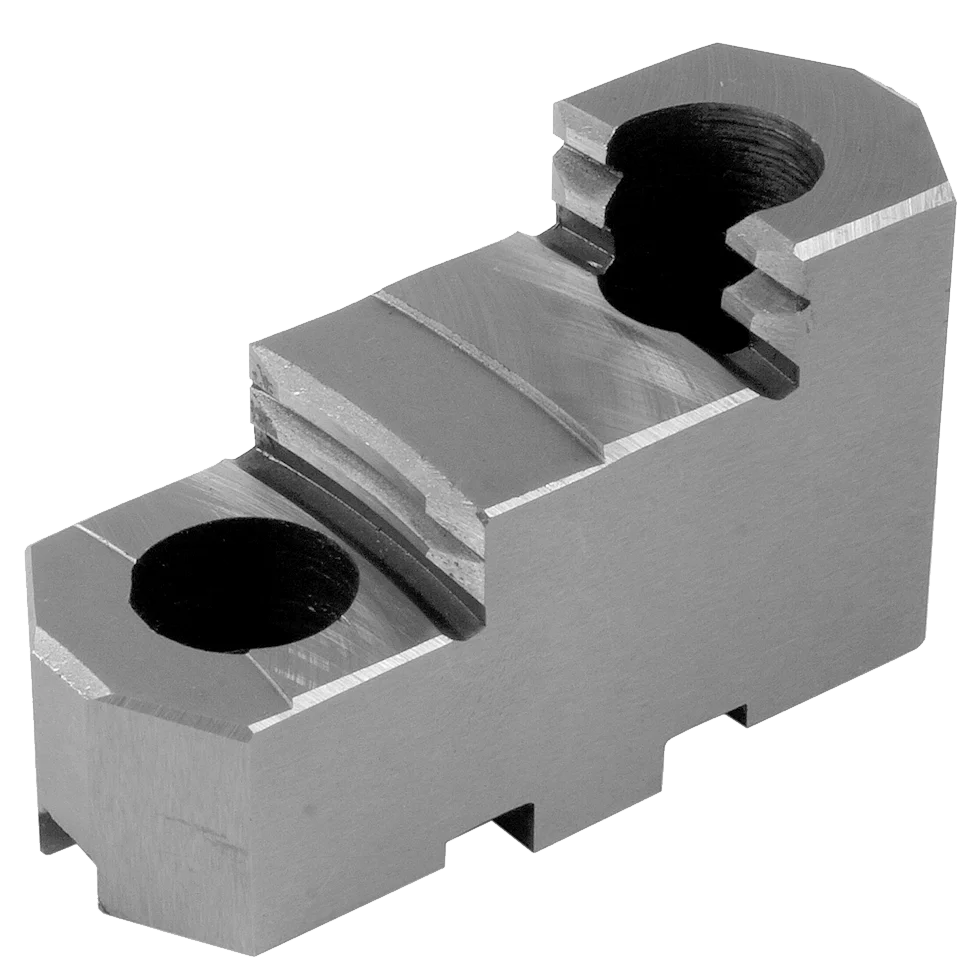

Hard Top Jaws for 4-Jaw Scroll Chucks 6"
Product Information
| Jaw Type | Hard Top Reversible |
| Chuck Type | 4-Jaw / Scroll |
| Chuck Dia (in) | 6-1/4 |
| Jaw Mount | Tongue & Groove |
| Jaw Material | Steel |
| Number of Jaw Bolt Mounting Holes | 2 |
| Weight Gross (lbs) | 1.60 |
| Includes | 4pc. Top Jaw Set |
Product Dimensions
| Chuck Dia (in) | 6-1/4 |
| Chuck Type | Scroll Self-Centering |
| M (in) | 3/4 |
| H (in) | 1-1/8 |
| G (in) | .4996 |
| J (in) | .43 |
| K (in) | .67 |
| D (in) | .3129 |
| E (in) | .157 |
| F (in) | .1260 |
| N (in) | .335 |
| C (in) | 1.634 |
| B (in) | .984 |
| OAL A (in) | 2.638 |
| O (in) | .807 |
| P (in) | 1.69 |
| Jaw Mounting Bolt Thread Size (in) | 3/8-16 |
