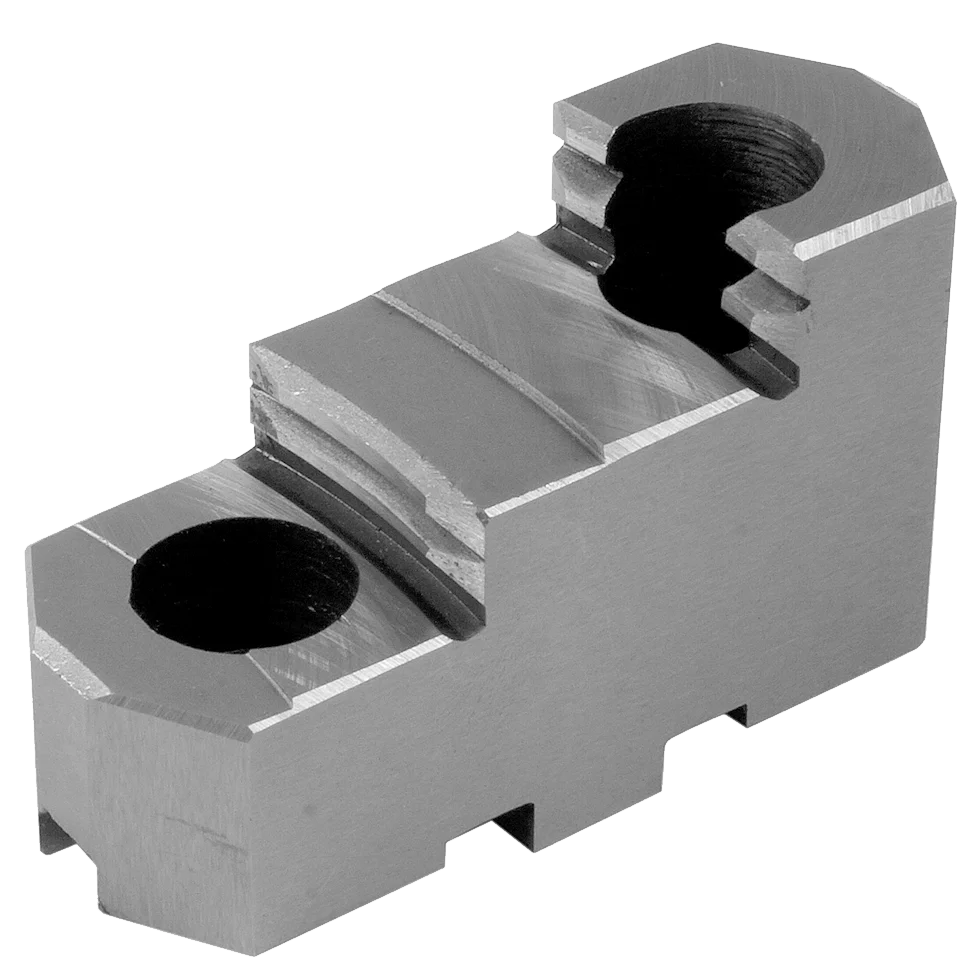

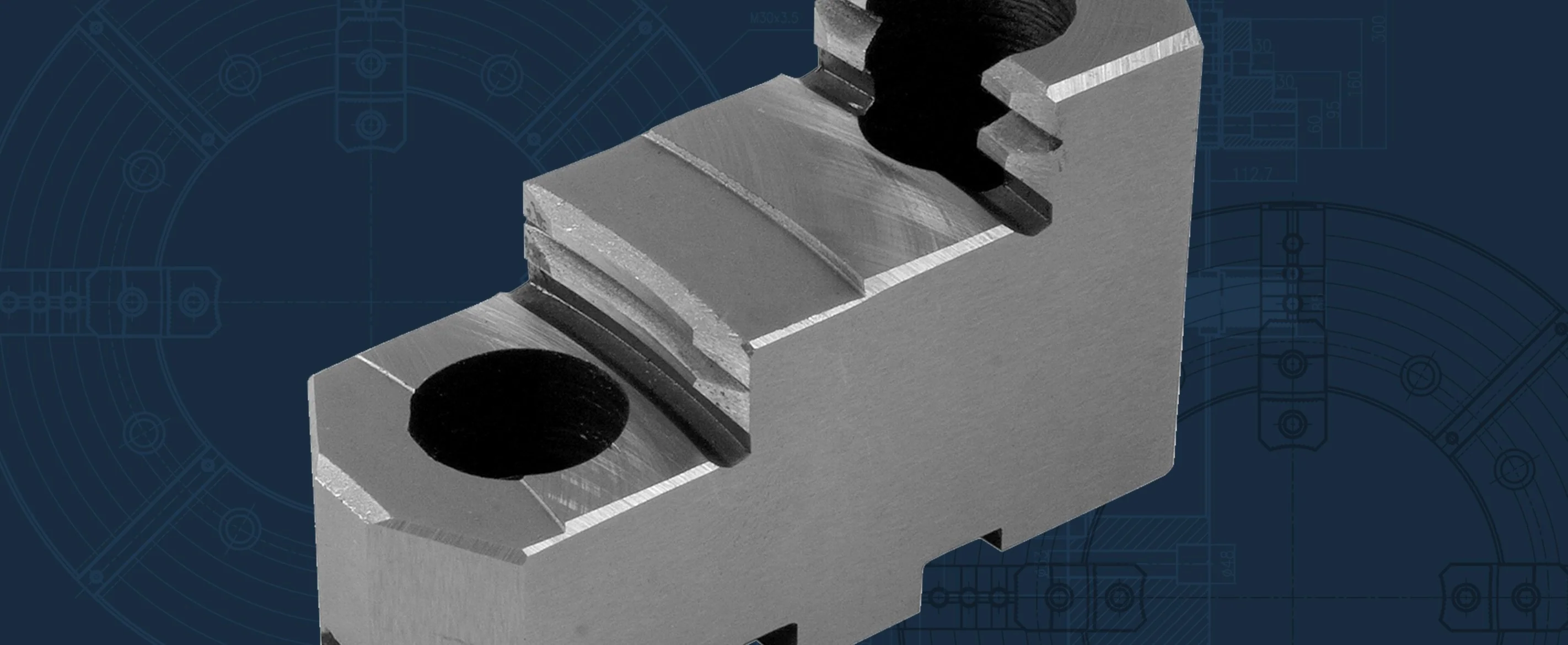

Hard Top Jaws for 3-Jaw Scroll Chucks 10"
Product Information
| Jaw Type | Hard Top Reversible |
| Chuck Type | 3-Jaw / Scroll |
| Chuck Dia (in) | 10 |
| Jaw Mount | Tongue & Groove |
| Jaw Material | Steel |
| Number of Jaw Bolt Mounting Holes | 2 |
| Weight Gross (lbs) | 3.20 |
| Includes | 3pc. Top Jaw Set |
Product Dimensions
| Chuck Dia (in) | 10 |
| Chuck Type | Scroll Self-Centering |
| M (in) | 1-1/16 |
| H (in) | 1-9/16 |
| G (in) | .7496 |
| J (in) | .55 |
| K (in) | .79 |
| D (in) | .5004 |
| E (in) | .157 |
| F (in) | .1260 |
| N (in) | .531 |
| C (in) | 2.087 |
| B (in) | 1.417 |
| OAL A (in) | 3.740 |
| O (in) | 1.14 |
| P (in) | 2.52 |
| Jaw Mounting Bolt Thread Size (in) | 1/2-13 |
