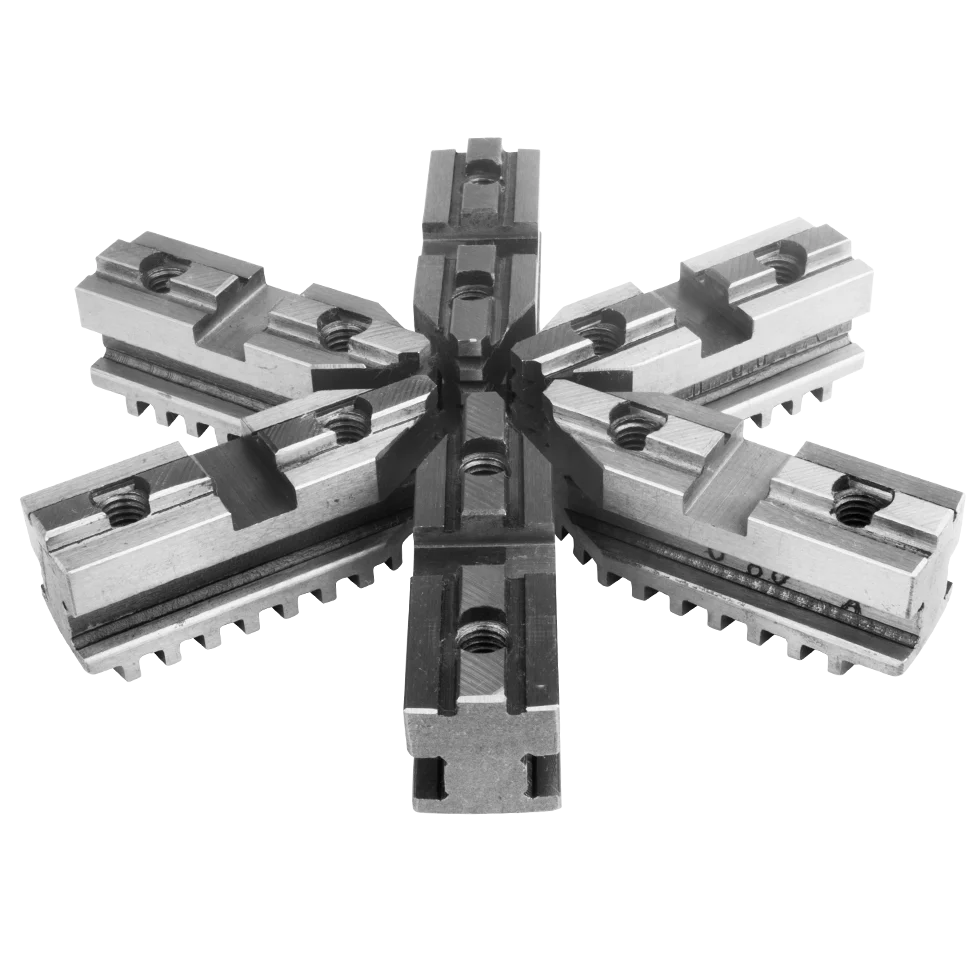

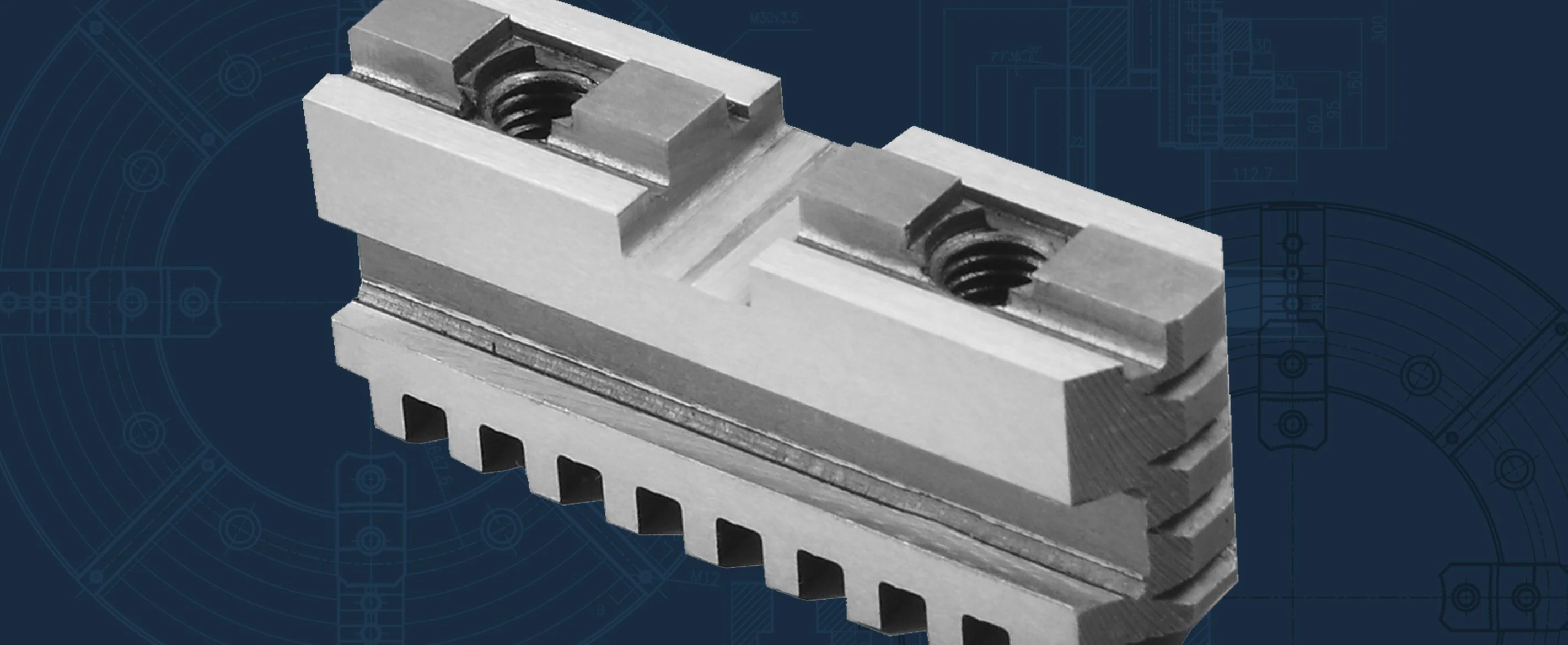

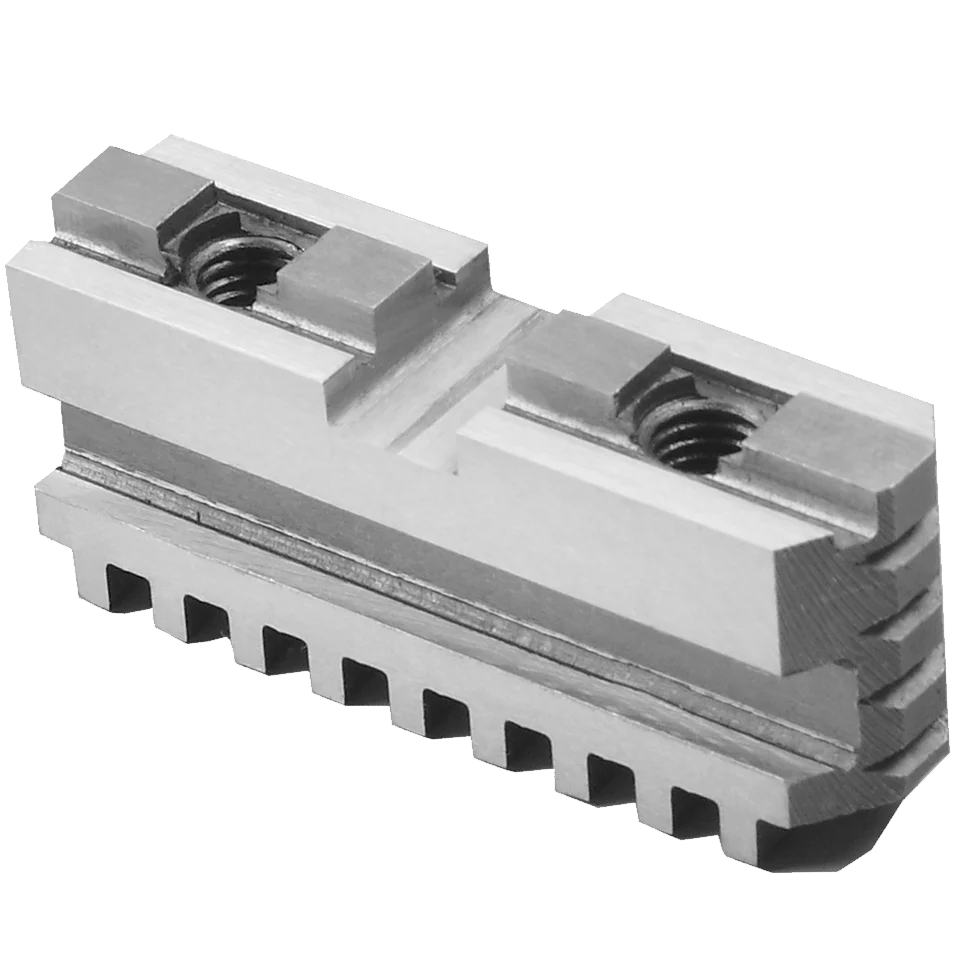

Hard Master Jaws for 6-Jaw Adjustable Scroll Chucks 12"
MJ-PS6-315
Product Information
| Jaw Type | Hard Master Jaws |
| Title | Hard Master Jaws for 6-Jaw adjustable Scroll Chucks - 12" |
| Chuck Type | 6-Jaw / Scroll |
| Chuck Dia (in) | 12-1/2 |
| Jaw Mount | Tongue & Groove |
| Jaw Material | Steel |
| Number of Jaw Bolt Mounting Holes | 3 |
| Weight Gross (lbs) | 10.20 |
| Includes | 6pc. Master Jaw Set |
Product Dimensions
| Chuck Dia (in) | 12-1/2 |
| Chuck Type | Scroll Self-Centering |
| K (in) | 1-1/4 |
| H (in) | 1-7/8 |
| G (in) | .7496 |
| F (in) | 1/2 |
| J (in) | .1575 |
| S (in) | .1260 |
| L (in) | .6299 |
| D (in) | .5000 |
| E (in) | .4724 |
| B (in) | 1.2598 |
| C (in) | 1.5748 |
| OAL A (in) | 4.3307 |
| Top Jaw Mounting Bolt Thread Size (in) | 1/2-13 |
