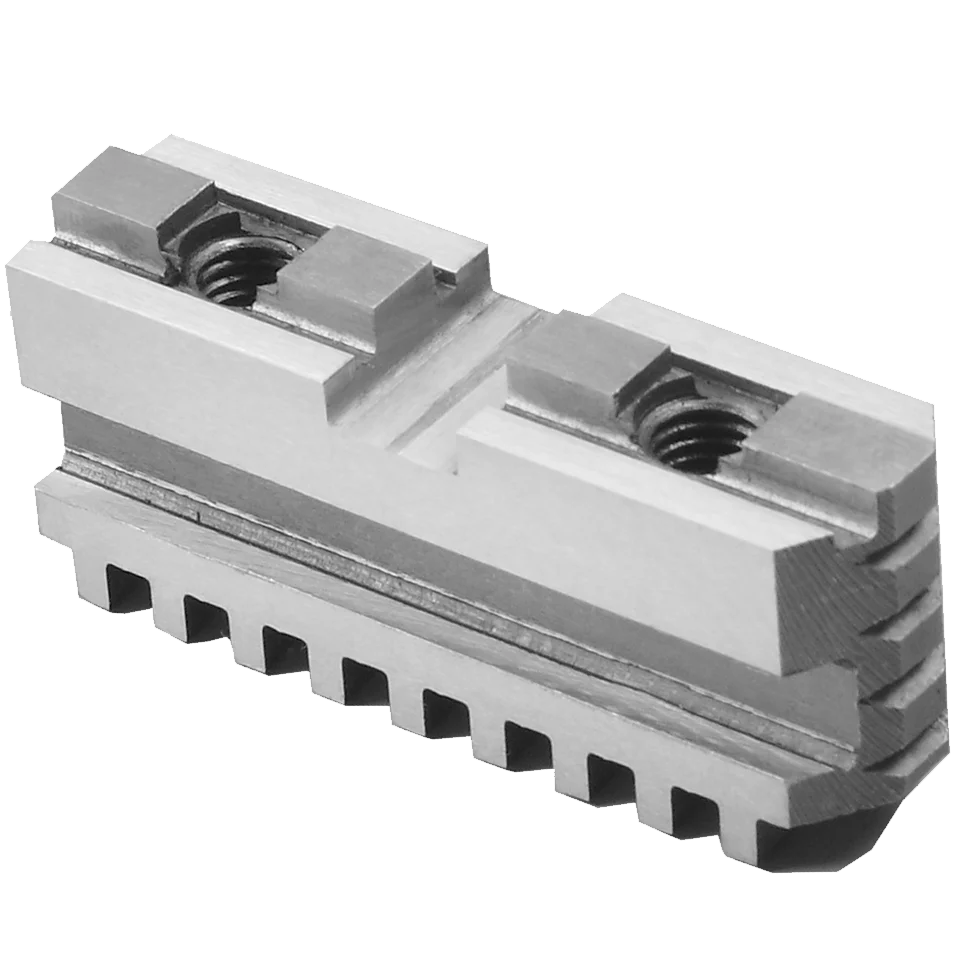

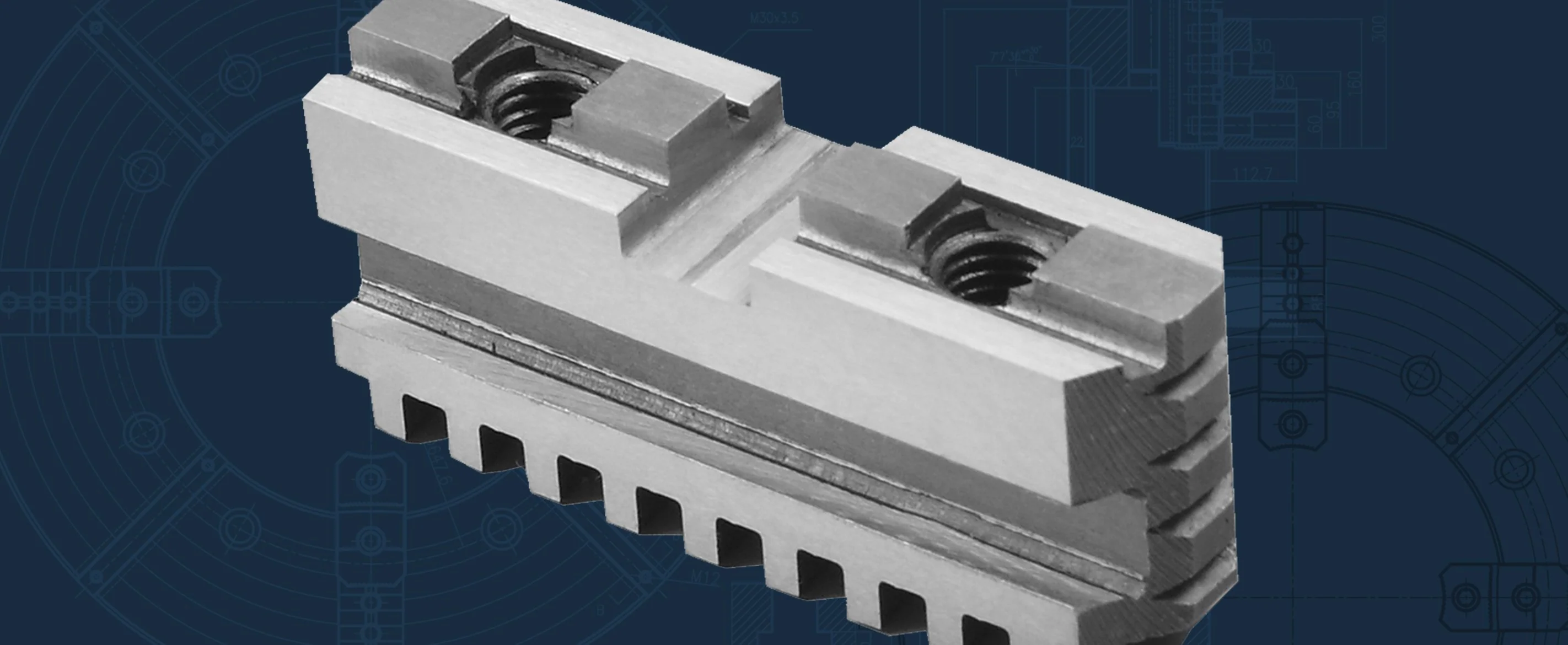

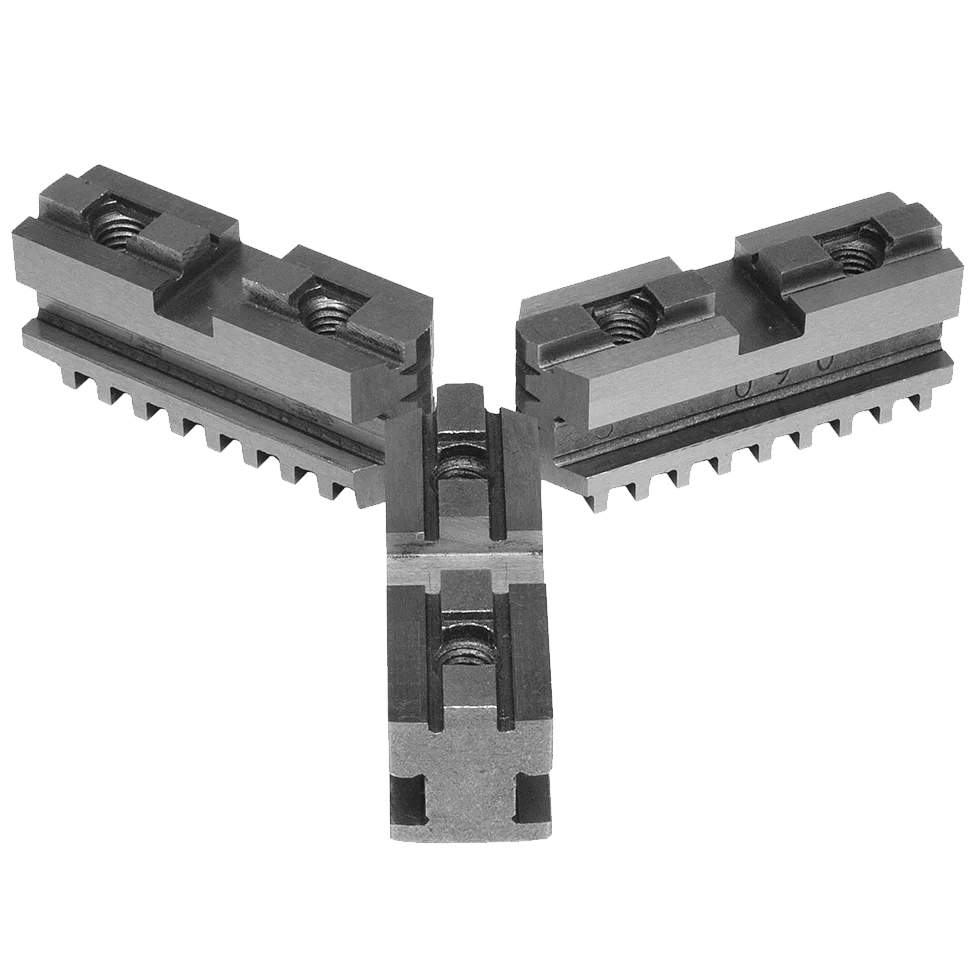

Hard Master Jaws for 3-Jaw Scroll Chucks 8"
Product Information
| Jaw Type | Hard Master Jaws |
| Title | Hard Master Jaws for 3-Jaw Scroll Chucks - 8" |
| Chuck Type | 3-Jaw / Scroll |
| Chuck Dia (in) | 8 |
| Jaw Mount | Tongue & Groove |
| Jaw Material | Steel |
| Number of Jaw Bolt Mounting Holes | 2 |
| Weight Gross (lbs) | 2.10 |
| Includes | 3pc. Master Jaw Set |
Product Dimensions
| Chuck Dia (in) | 8 |
| Chuck Type | Scroll Self-Centering |
| K (in) | 7/8 |
| H (in) | 1-3/8 |
| G (in) | .4996 |
| F (in) | 5/16 |
| J (in) | .1575 |
| S (in) | .1260 |
| L (in) | .5511 |
| D (in) | .3543 |
| E (in) | .3937 |
| B (in) | .9843 |
| C (in) | 1.2992 |
| OAL A (in) | 3.1102 |
| Top Jaw Mounting Bolt Thread Size (in) | 3/8-16 |
