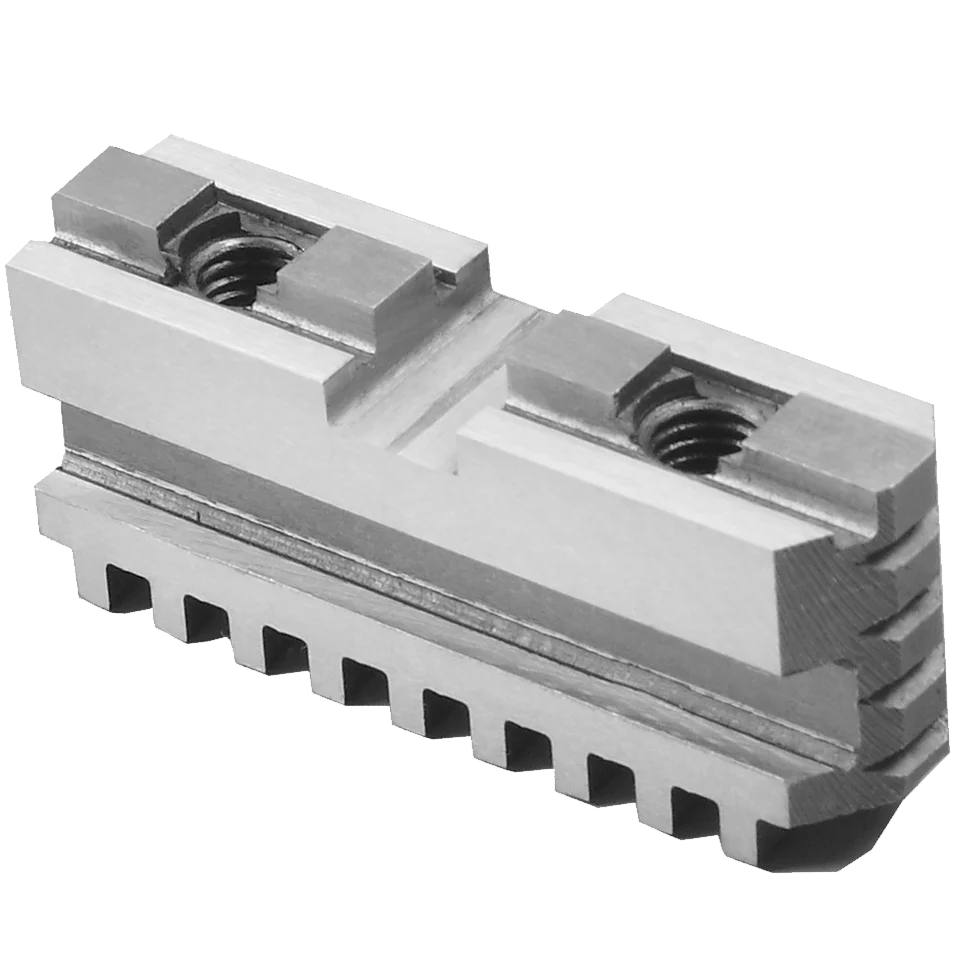

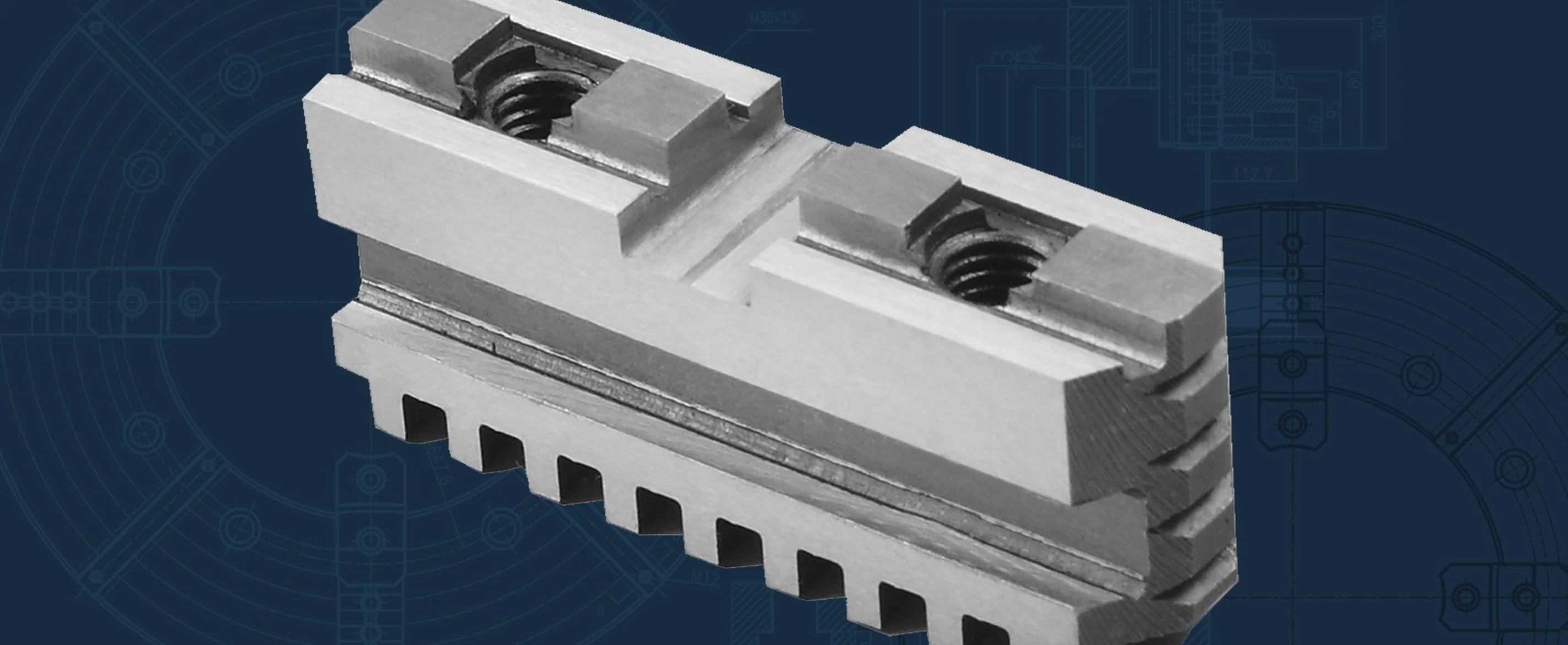

Hard Master Jaws for 3-Jaw Scroll Chucks 32"
Product Information
| Jaw Type | Hard Master Jaws |
| Title | Hard Master Jaws for 3-Jaw Scroll Chucks - 32" |
| Chuck Type | 3-Jaw / Scroll |
| Chuck Dia (in) | 31-1/2 |
| Jaw Mount | Tongue & Groove |
| Jaw Material | Steel |
| Number of Jaw Bolt Mounting Holes | 5 |
| Weight Gross (lbs) | 27.1 |

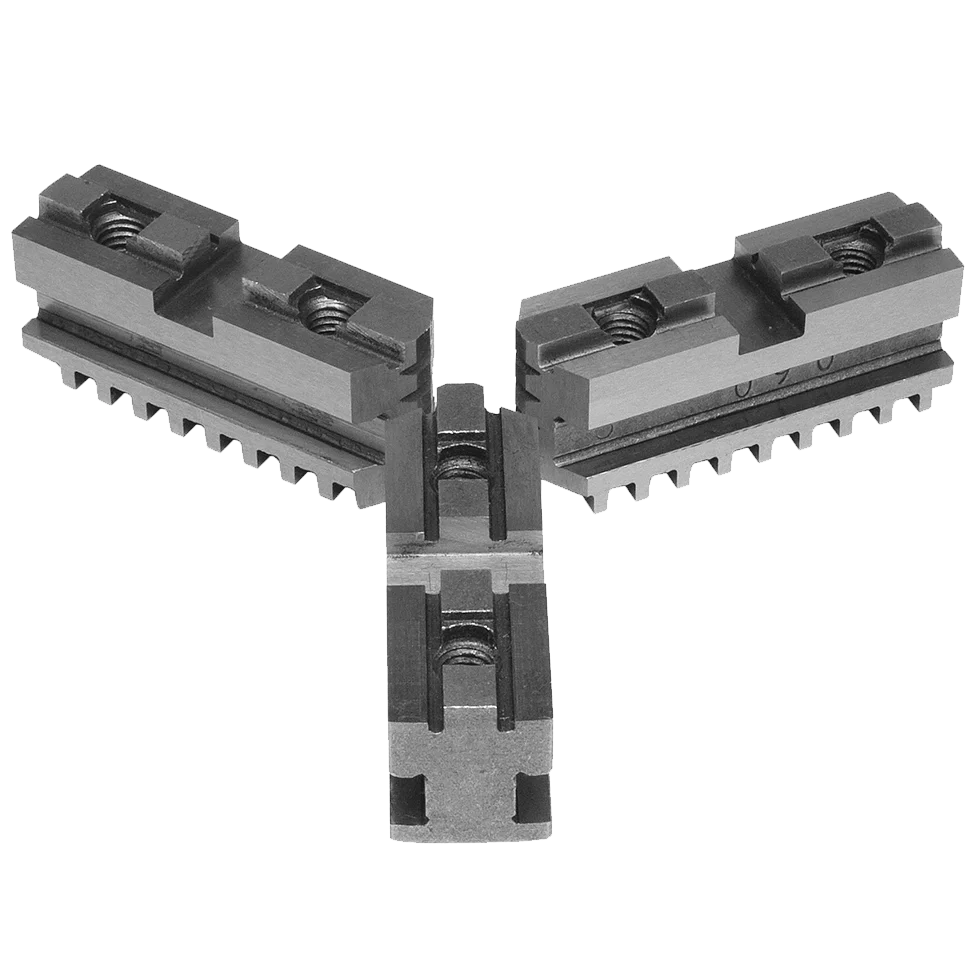

| Includes | 3pc. Master Jaw Set |
Product Dimensions
| Chuck Dia (in) | 31-1/2 |
| Chuck Type | Scroll Self-Centering |
| K (in) | 1-1/2 |
| H (in) | 2-1/4 |
| G (in) | .7496 |
| F (in) | 1/2 |
| J (in) | .2835 |
| S (in) | .1260 |
| L (in) | 1.2598 |
| D (in) | .6299 |
| E (in) | .5512 |
| B (in) | 1.9685 |
| C (in) | 2.1457 |
| OAL A (in) | 8.8583 |
| Top Jaw Mounting Bolt Thread Size (in) | 3/4-10 |
