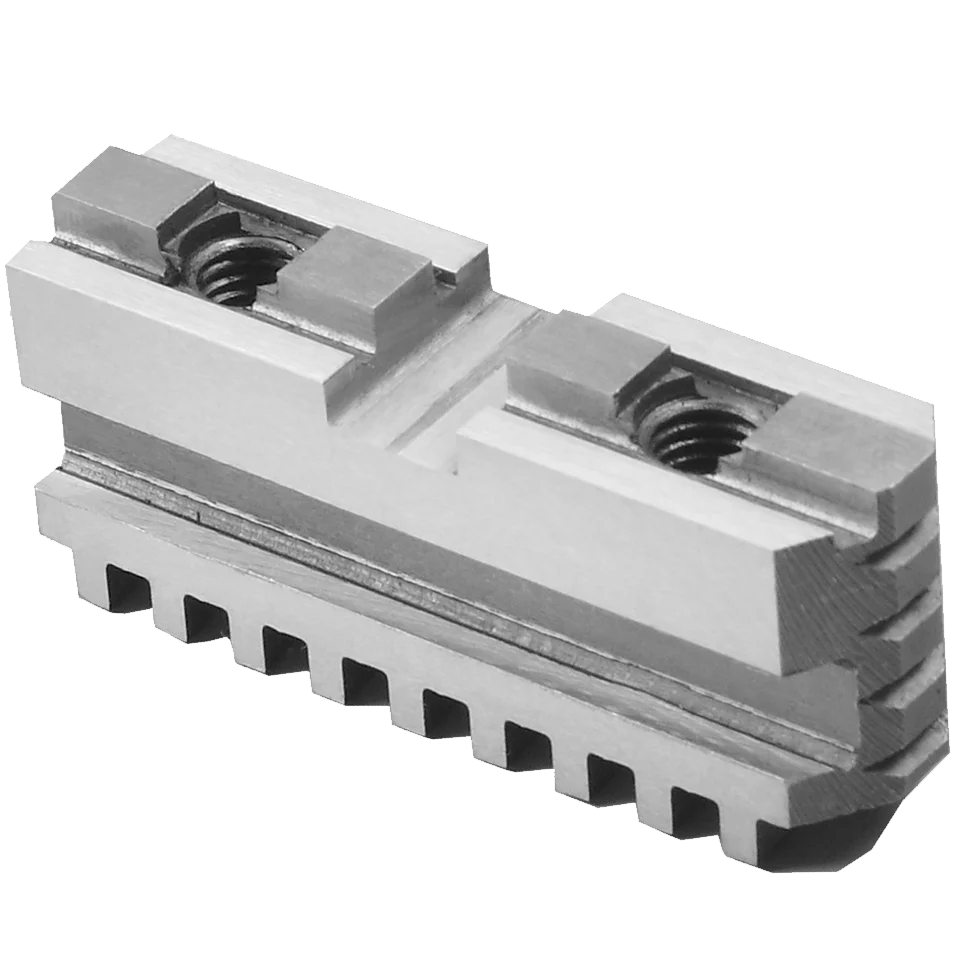

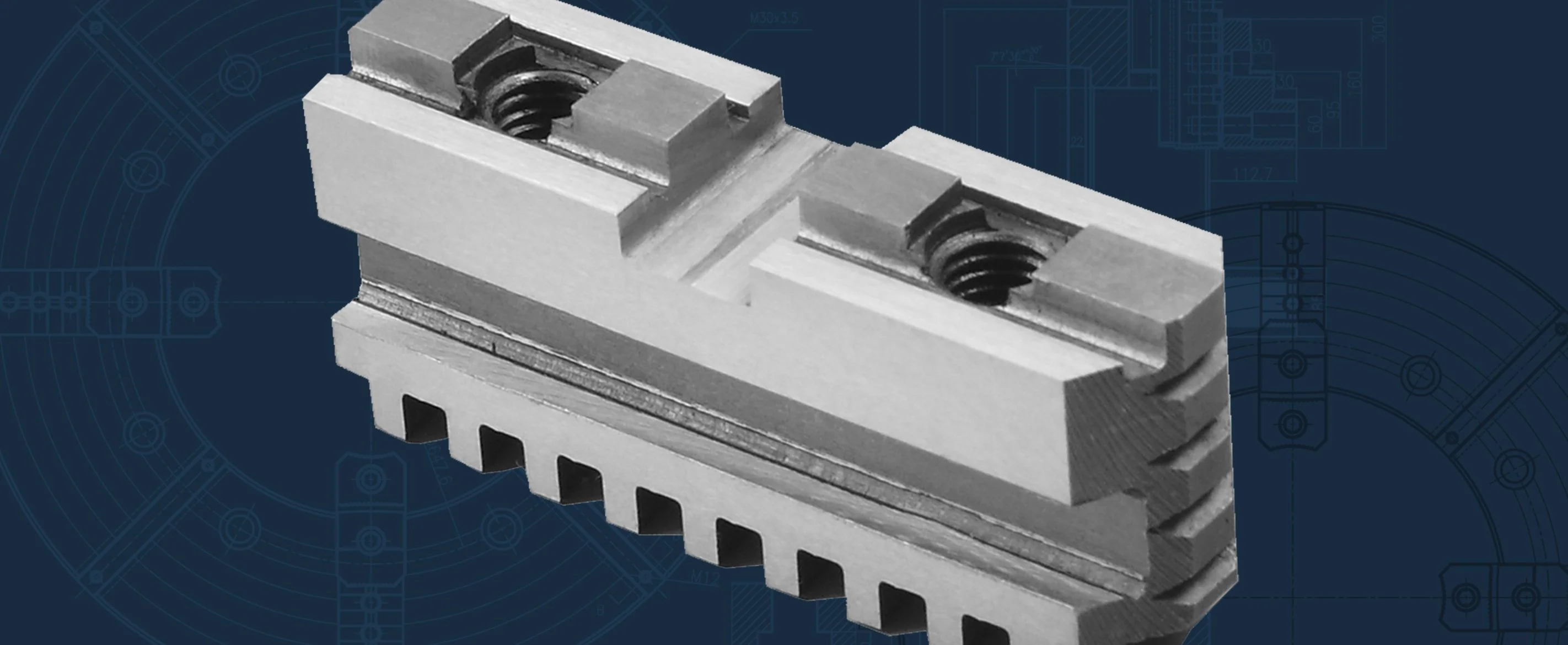

Hard Master Jaws for 3-Jaw Large Thru-Hole Scroll Chucks 16"
Product Information
| Jaw Type | Hard Master Jaws |
| Title | Hard Master Jaws for 3-Jaw large thru-hole Scroll Chucks - 16" |
| Chuck Type | 3-Jaw / Scroll / Large Thruhole |
| Chuck Dia (in) | 15-3/4 |
| Jaw Mount | Tongue & Groove |
| Jaw Material | Steel |
| Number of Jaw Bolt Mounting Holes | 3 |
| Weight Gross (lbs) | 7.30 |
| Includes | 3pc. Master Jaw Set |
Product Dimensions
| Chuck Dia (in) | 15-3/4 |
| Chuck Type | Scroll Self-Centering |
| K (in) | 1-1/2 |
| H (in) | 2-1/4 |
| G (in) | .7496 |
| F (in) | 1/2 |
| J (in) | .2835 |
| S (in) | .1260 |
| L (in) | .8661 |
| D (in) | .5315 |
| E (in) | .5118 |
| B (in) | 1.4173 |
| C (in) | 1.9291 |
| OAL A (in) | 4.7244 |
| Top Jaw Mounting Bolt Thread Size (in) | 5/8-11 |
