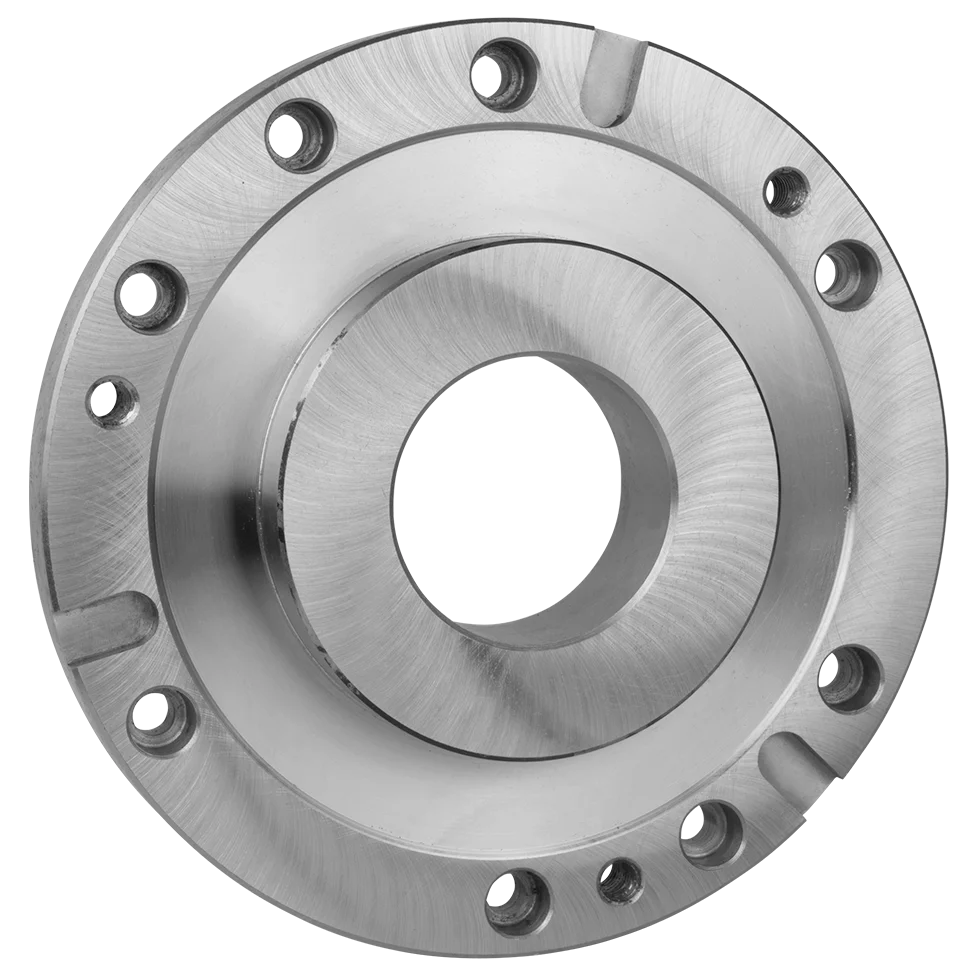

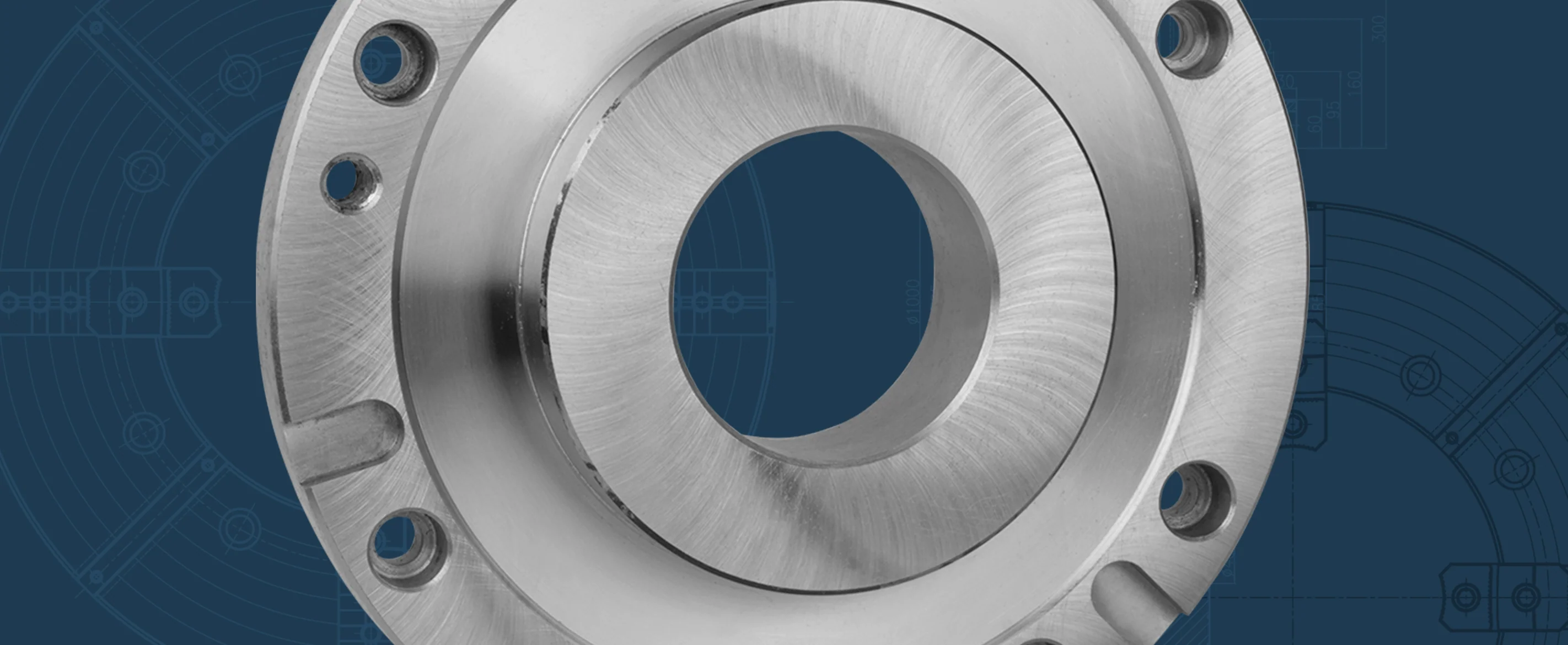

Base Plate (Steel), for 6" Adjustable Chucks, No Centering Ring
Product Information
| Chuck Type | Scroll, Adjustable |
| Chuck Mount | Front Mount |
| Chuck Dia (in) | 6-1/4 |
| Base Plate Thru-Hole (in) | 1.85 |
| Chuck T.I.R Radial (in) | 0.0004 |
| Base Plate Material | Steel |
| Weight (Gross) lbs | 6 |
| Includes | Base Plate Mounting Bolts, T-Nuts, Hex Key |
Product Dimensions
| Chuck Diameter (in) | 6-1/4 |
| Base Plate Dia D (in) | 6.299 |
| F (in) | 5.512 |
| E H7 (in) | 3.386 |
| d Hole (in) | 1.85 |
| G (in) | 5.512 |
| H (in) | 0.63 |
| M Chuck Mounting Bolt Thread (mm) | M10 x 1.50 |
| M Chuck Mounting Bolt QTY | 3 |
| M1 Base Plate Mounting Bolt Thread (in) | M8 |
| M1 Base Plate Mounting Bolt QTY | 4 |
| Base Plate T-Nut Size (in / mm) | 3/8" (10mm) |
| HAAS Indexer Model | HRT160 |
Accessories
| Chucks | |
|---|---|
| 3-Jaw Adjustable Scroll Chucks 2PC Jaws Steel | 1-101-0600 |
| 6-Jaw Adjustable Scroll Chucks 2PC Jaws Steel | 1-103-0600 |
| 3-Jaw Adjustable Scroll Chucks 2PC Jaws Cast Iron | 1-151-0600 |
| 6-Jaw Adjustable Scroll Chucks 2PC Jaws Cast Iron | 1-153-0600 |
| Spare Parts | |
| T-Nut (Set) | T-Nut-10 |
