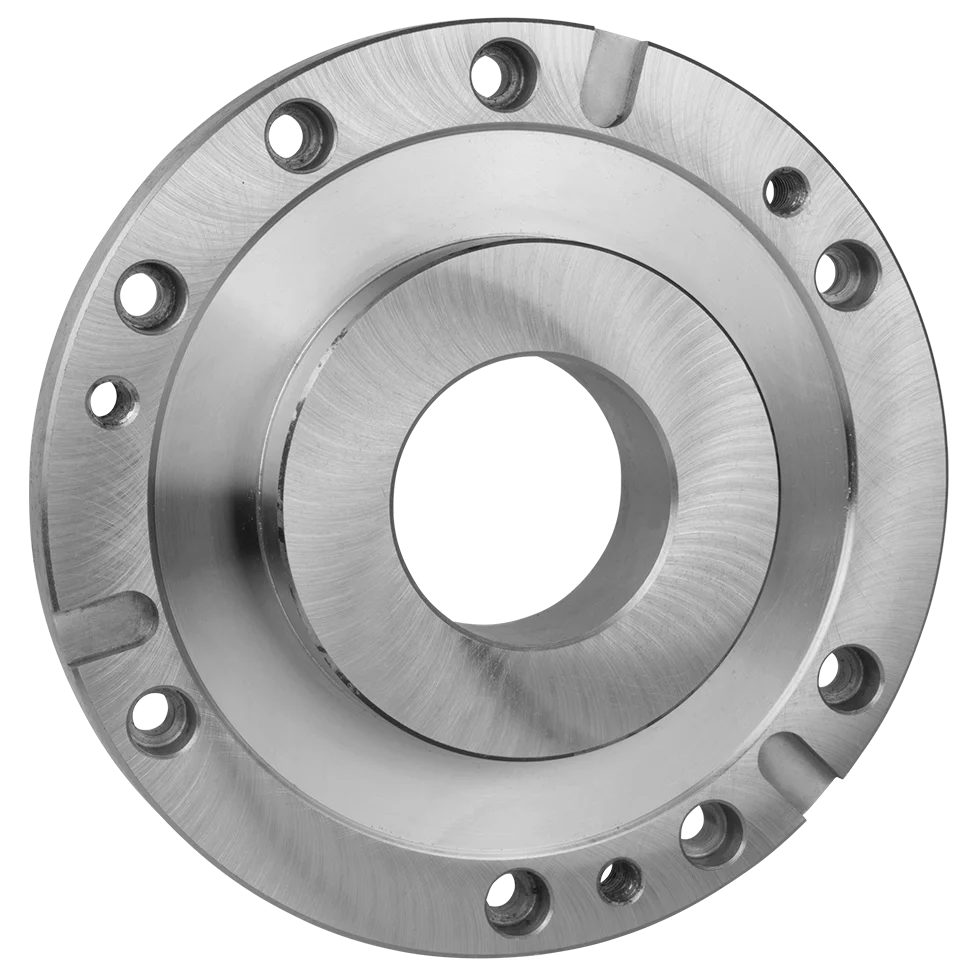

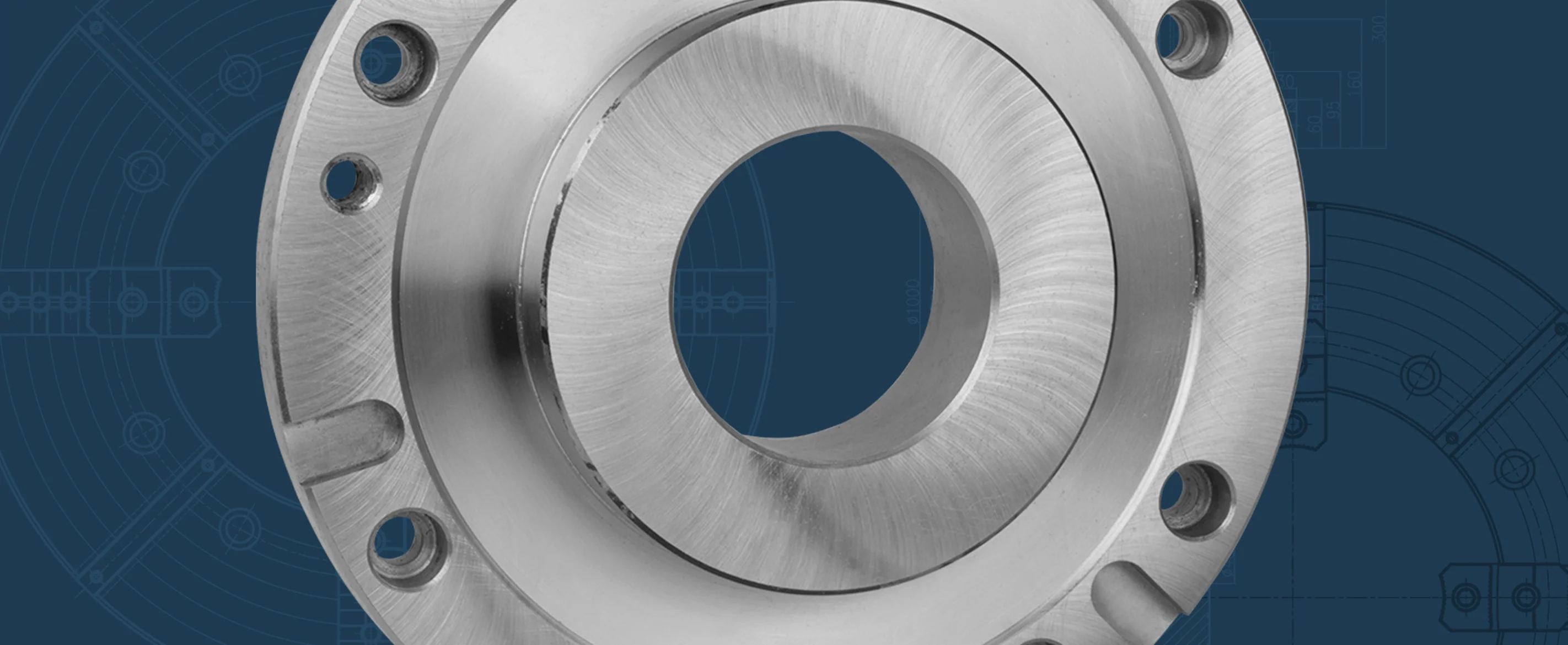

Base Plate (Steel), for 16" Adjustable Chucks, No Centering Ring
Product Information
| Part Number | F-BPA-400 |
| Chuck Type | Scroll, Adjustable |
| Chuck Mount | Front Mount |
| Chuck Dia (in) | 15-3/4 |
| Base Plate Thru-Hole (in) | 5.551 |
| Chuck T.I.R Radial (in) | 0.0004 |
| Base Plate Material | Steel |
| Weight (Gross) lbs | 40 |
| Includes | Base Plate Mounting Bolts, T-Nuts, Hex Key |
Product Dimensions
| Chuck Diameter (in) | 15-3/4 |
| Base Plate Dia D (in) | 11.75 |
| F (in) | 9.252 |
| E H7 (in) | 16.024 |
| d Hole (in) | 5.551 |
| G (in) | 10.236 |
| H (in) | 1.358 |
| M Chuck Mounting Bolt Thread (mm) | 5/8-11 |
| M Chuck Mounting Bolt QTY | 6 |
| M1 Base Plate Mounting Bolt Thread (in) | M12 |
| M1 Base Plate Mounting Bolt QTY | 4 |
| Base Plate T-Nut Size (in / mm) | 47/64" (14mm) |
| HAAS Indexer Model | HRT450 |
Accessories
| Chucks | |
|---|---|
| 3-Jaw Adjustable Scroll Chucks 2PC Jaws Steel | 1-101-1600 |
| 6-Jaw Adjustable Scroll Chucks 2PC Jaws Steel | 1-103-1600 |
| 3-Jaw Adjustable Scroll Chucks 2PC Jaws Cast Iron | 1-151-1600 |
| 6-Jaw Adjustable Scroll Chucks 2PC Jaws Cast Iron | 1-153-1600 |
| Spare Parts | |
| T-Nut (Set) | T-Nut-14 |
