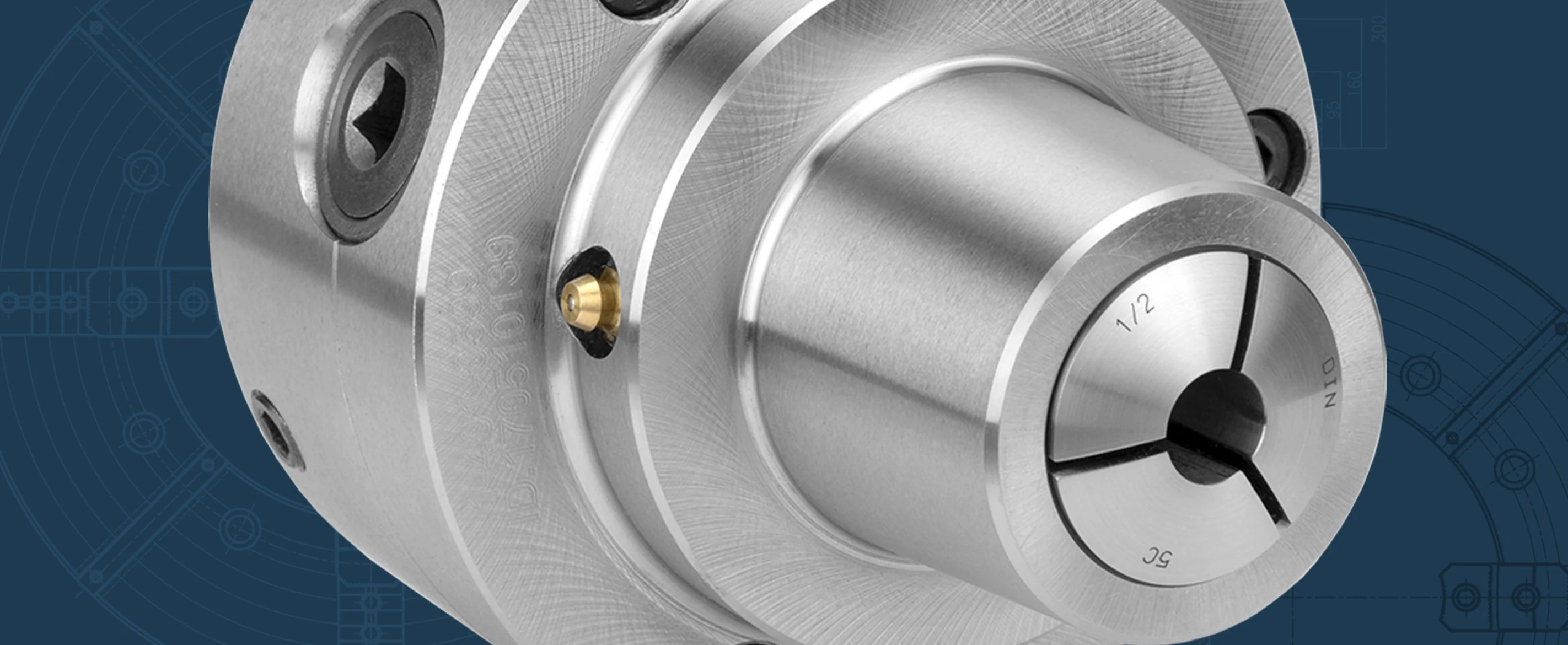

Product Information

Part Number	1-401-0599
Chuck Type	Collet Chuck
Chuck Mount	Adjustable
Spindle Type	Requires Adapter
Chuck Dia (in)	5
Thru-Hole (in)	1-1/8
Gripping Range Min-Max (in)	3/64 - 1-1/8
Chuck Accuracy	Precision Adjustable
Max RPM	6000
Material	Forged Steel
Collet Type	5C Collet
Weight Gross (lbs)	6
Includes	1 Set of Chuck Mounting Molts, 1 Spring-Loaded Chuck T-Wrench, 1 Set of Fine Adjustment Screws, 3 Hex Keys

Product Dimensions

D (in)	5
D1 (in)	3.4764
F (in)	4.2520
E H7 (in)	2.1654
C (in)	0.59
H (in)	2.48
H1 (in)	5
N Fine Adjustment Screw Thread (mm)	M12 x 1
M Mounting Bolt Thread (mm)	M8x1.25
M Mounting Bolt Length (in)	3.07
Mounting Bolt Qty	3

Accessories

Spare Parts
Chuck Wrench (1 Pc)	W-P-125
Scroll (1 Pc)	SC-PC-125
Pinion (1 Pc)	PI-PO-125
Pinion Sleeve (1Pc)	PS-P-125
Half  Ring (1 Pc)	HR-P-125
Fine  Adjustment Screws (1 Pc)	FS-P-125
M Chuck Mounting Bolts Front Mount (1 Pc)	MB-BA-125
Adapters
Adapter Adjustable A4	FLA-125A4
Adapter Adjustable A5	FLA-125A5
Adapter Adjustable A6	FLA-125A6
Adapter Adjustable D3	FLA-125D3
Adapter Adjustable D4	FLA-125D4
Adapter Adjustable D5	FLA-125D5
Adapter Adjustable D6	FLA-125D6
Adapter Adjustable 1-1/2"-8UN-2B	FLA-125T2
Adapter Adjustable 1-1/8"-12W	FLA-125T3
Adapter Adjustable 2-3/16"-10 Hardinge	FLA-125T4
Adapter Adjustable 2-1/4"-8UN-2B	FLA-125T5
Base Plate Adjustable (1 Pc)	F-BPA-125
