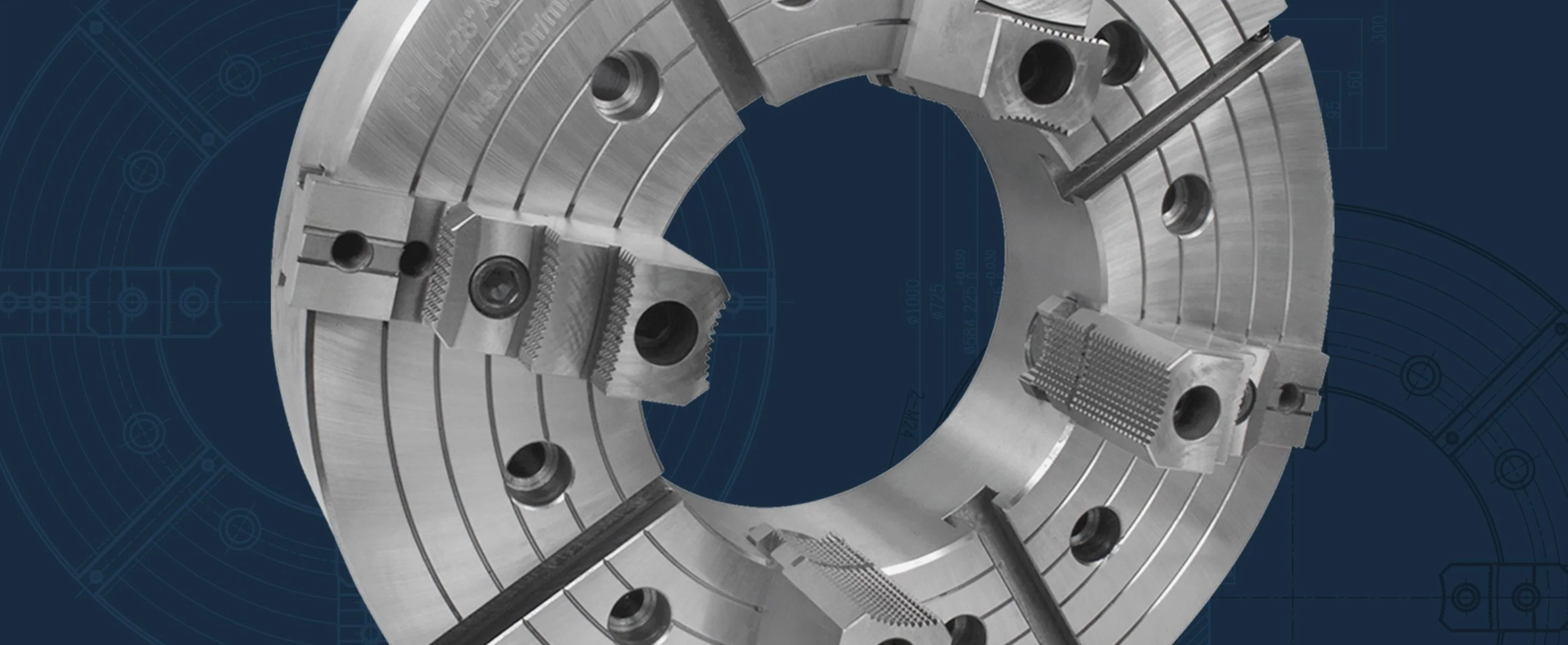

4-Jaw Independent (Heavy Duty) 40" Steel Body, Direct Mount A2-28, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | HD Independent |
| Chuck Mount | A2-28 |
| Spindle Type | A2-28 |
| Chuck Dia (in) | 40" |
| Thru-Hole (in) | 20.86 |
| Torque on the Wrench (lb ft) | 368 |
| Gripping Force per Jaw (lbf) | 10,116 |
| Gripping Range Min-Max (in) | 13.73 - 39.40 |
| Chuck T.I.R Radial (in) | 0.0071 |
| Max RPM | 430 |
| Material | Forged Steel |
| Number of Jaws | 4 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 1851.88 |
| Includes | 1 Set of HD Master and Hard Top Reversible Jaws, Chuck Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 40" |
| Taper Size | A2-28 |
| Thru-Hole Dia d (in) | 20.86 |
| B (in) | 25.500 |
| G (in) | 23.001 |
| C (in) | 1.1023 |
| H (in) | 6.89 |
| h (in) | 3.571 |
| L (in) | 2.953 |
| K (in) | 1.10 |
| N (in) | .866 |
| M Mounting Bolt Thread (mm) | M30x3.5 |
| Mounting Bolt Length (in) | 7.0866 |
| Mounting Bolt Qty | 8 |
Crossover to Other Brands
| Bison | 7-859-4063 |
Accessories
| Jaws | |
|---|---|
| Hard Top Reversible HD Jaws (1 pc) | TJ-PEI-1000 |
| Hard master HD Jaws (1 pc) | MJ-PEI-1000 |
| Spare Parts | |
| Operating Screw (1 pc) | OS-PEI-928 |
| Thrust Bearing (1 pc) | TB-PEI-1000 |

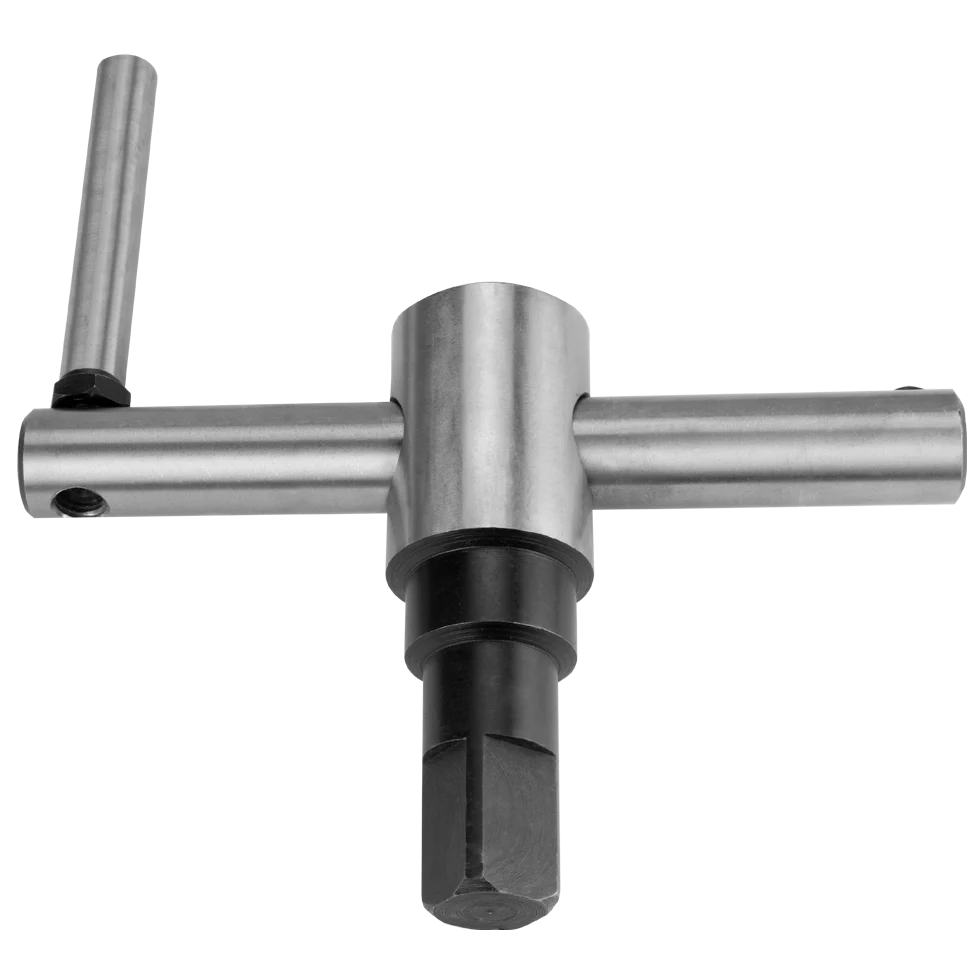

| Heavy Duty Wrench (1 pc) | W-PEI-1000 |
| Chuck Mounting Bolts (1 pc) | MB-PEI-1028 |
