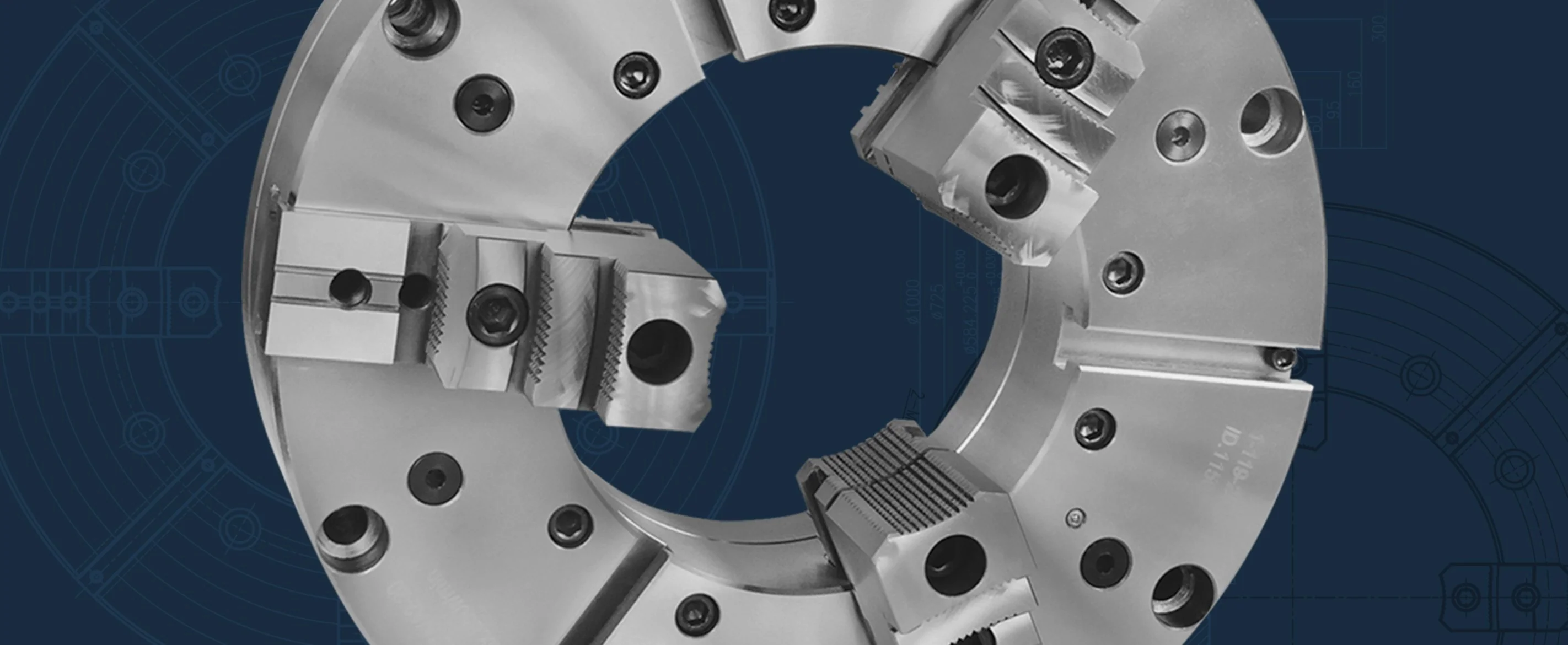

3-Jaw Scroll (Heavy Duty) 32" Steel Body, Direct Mount A2-20, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | HD Scroll Self-Centerimg |
| Chuck Mount | A2-20 |
| Spindle Type | A2-20 |
| Chuck Dia (in) | 31-1/2 |
| Thru-Hole (in) | 12.55 |
| Gripping Force per Jaw (lbf.) | 19,140 |
| Gripping Range Min-Max (in) | 7.09 - 31.50 |
| Chuck T.I.R (in) | 0.0059 |
| Max RPM | 600 |
| Material | Forged Steel |
| Number of Jaws | 3 |
| Jaw Type | 2PC Reversible |
| Weight Gross (lbs) | 1333.80 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Chuck Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| Chuck Mount | A2-20 |
| D (in) | 31-1/2 |
| B (in) | 18.25 |
| G (in) | 16.251 |
| d Thru-Hole Dia (in) | 12.55 |
| H (in) | 6.063 |
| h (in) | 3.642 |
| C (in) | .9450 |
| S (in) | 3.295 |
| N (in) | 5.315 |
| K (in) | .866 |
| L (in) | 2.953 |
| Hard Top Jaw Width (in) | 3.346 |
| Master Jaw Width (in) | 3.150 |
| M Mounting Bolt Thread (mm) | M24x3 |
| Chuck Mounting Bolt Qty | 6 |
| Top Jaw Mounting Bolt Thread (in) | 7/8 - 9 |
Crossover to Other Brands
| Bison | 7-825-3220 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (Set) | TJ-PEO3-800 |
| Hard Master Jaws (Set) | MJ-PEO3-800 |
| Spare Parts | |
| Pinion (1 Pc) | PI-PEO-820 |
| Scroll Plate (1 Pc) | SC-PEO-820 |
| Pinion Sleeve (1 Pc) | PS-PEO-800 |
| Pinion Half Ring (1 Pc) | HR-PEO-630 |

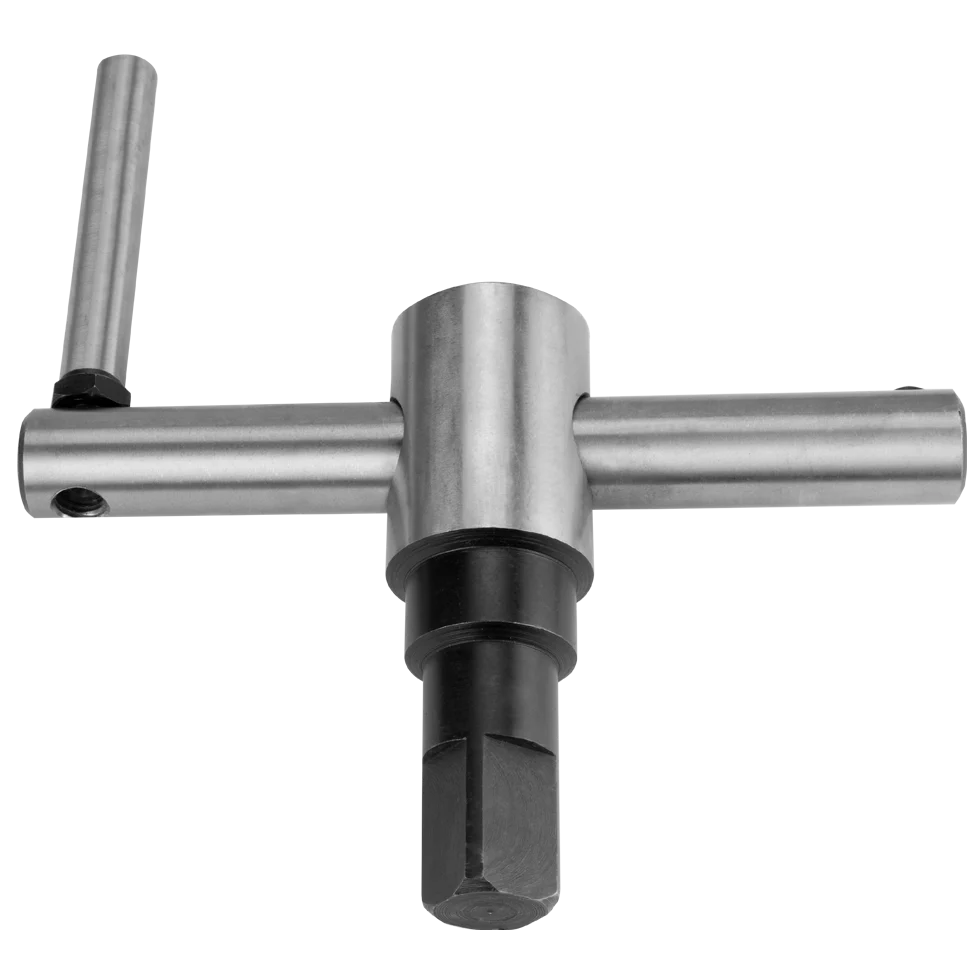

| HD Wrench (1 Pc) | W-PEO-630 |
