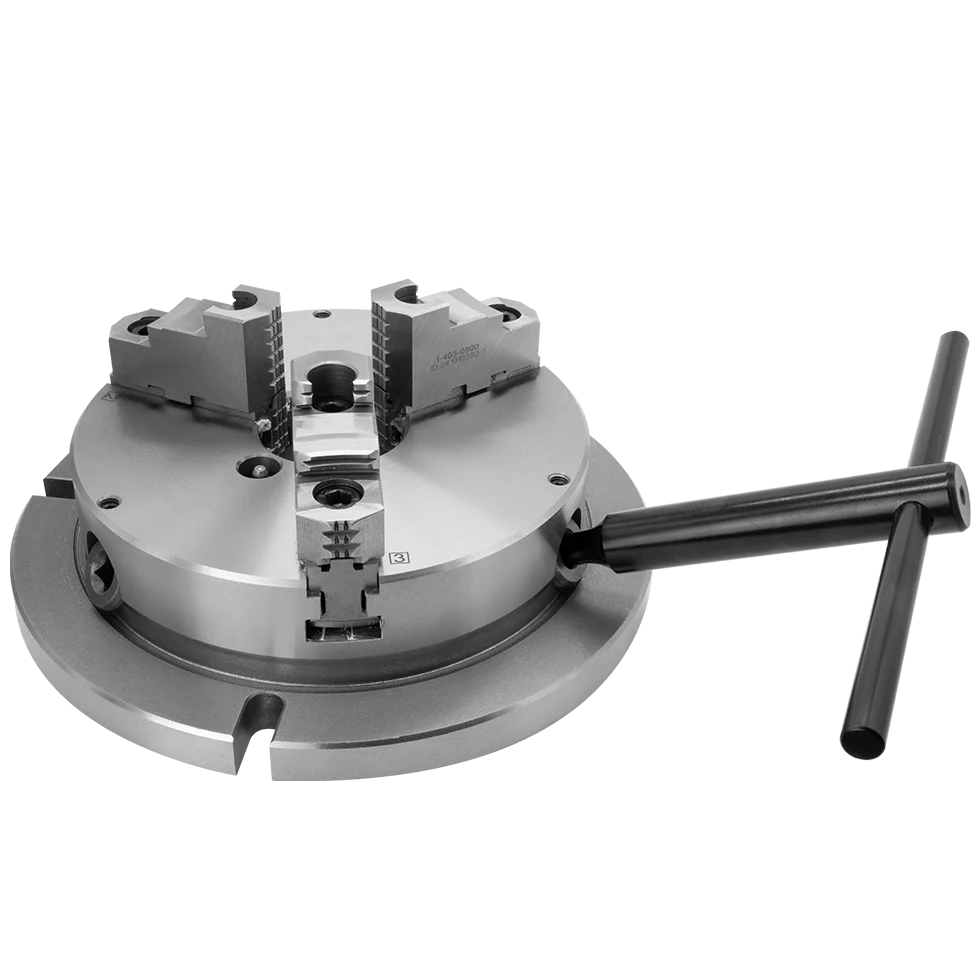

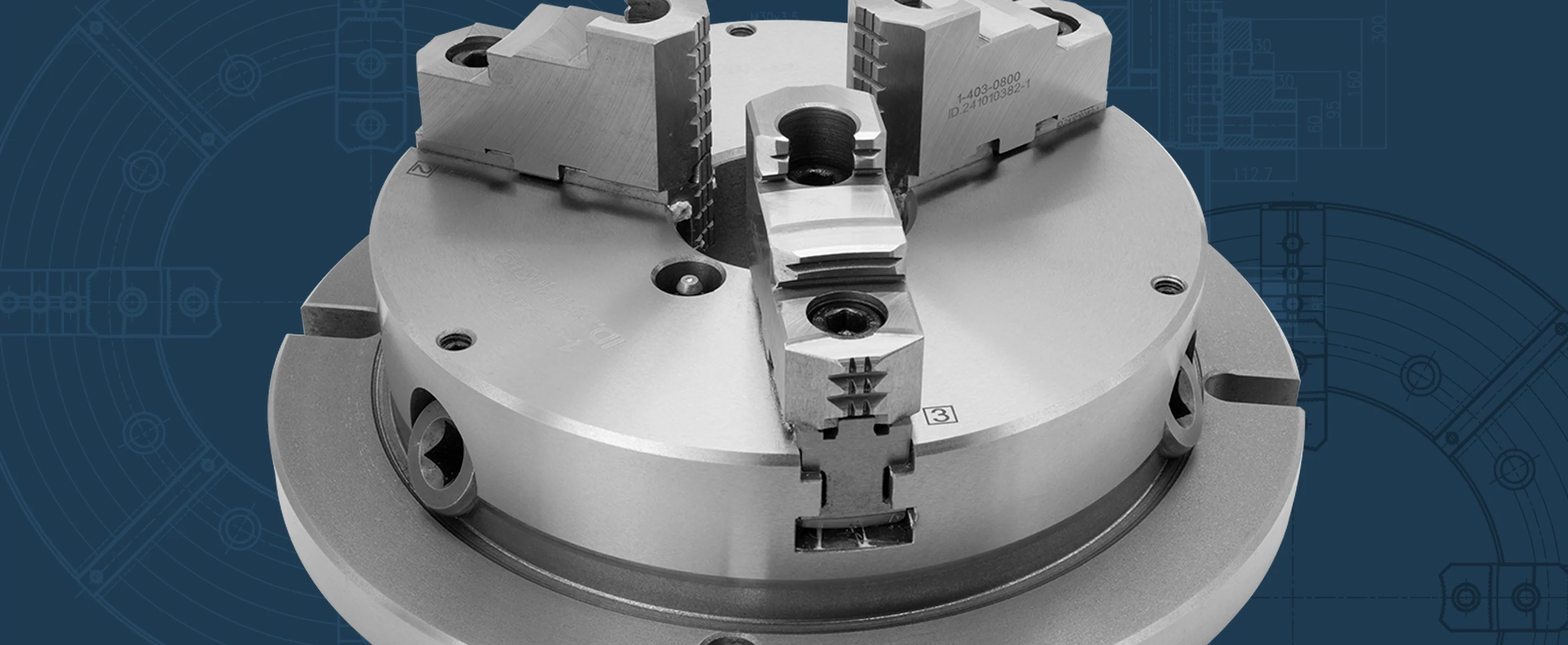

3-Jaw Low Profile Scroll Chuck, 10" Cast-Iron Body, Flat Back, 2 PC Hard Rev. Jaws
Product Information
| Part Number | 1-403-1000 |
| Chuck Type | Scroll Self-Centering |

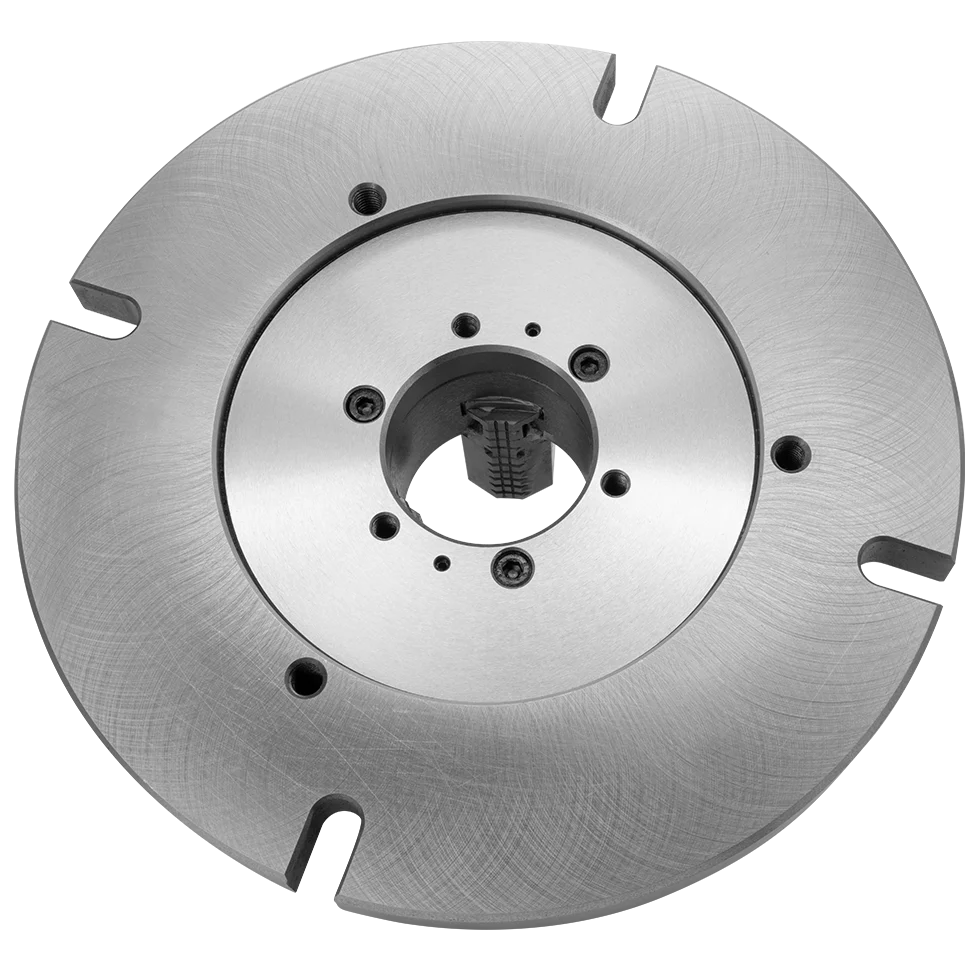

| Chuck Mount | Flat Back |
| Spindle Type | Table Mount |
| Chuck Dia.(in) | 10.04 |
| Thru-Hole (in) | 3.1496 |
| Gripping Range Min - Max (in) | 0.472 - 9.449 |
| Chuck Accuracy Repeatability (in) | 0.006 |
| Material | Cast Iron |
| Number of Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 62.00 |

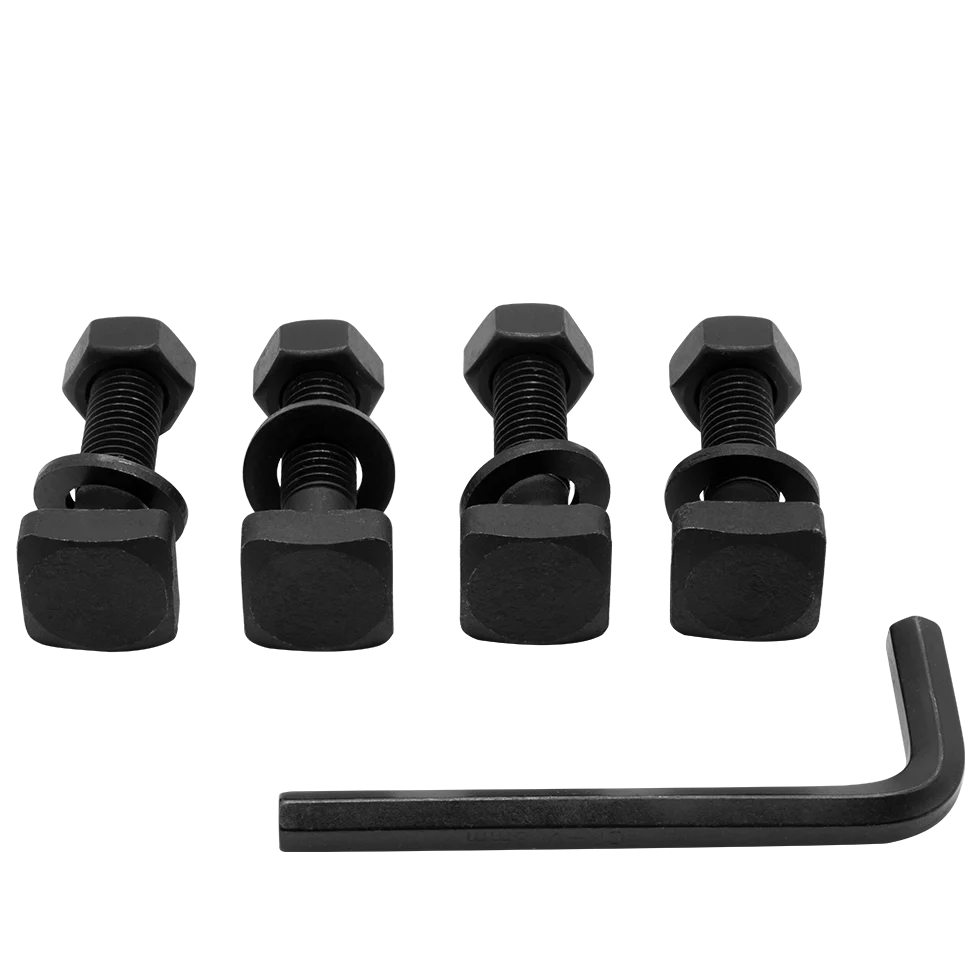

| Includes | 1 Set of Hard Master and Hard Top Reversible Jaws, Chuck Mounting Bolts, Chuck Wrench, Hex Key |
Product Dimensions
| A1 (in) | 10.04 |
| A2 (in) | 12.40 |
| C (in) | 0.2362 |
| D H6 (in) | 7.48 |
| E Hole (in) | 3.15 |
| F (in) | 8.27 |
| G Slot Size (in) | 0.6299 |
| B1 (in) | 2.87 |
| B2 (in) | 0.79 |
| H (in) | 2.13 |
| P (in) | 2.52 |
| O (in) | 1.14 |
| L (in) | 3.74 |
| M1 Jaw Bolts (mm) | 3-M12x1.75 |
| Jaw Bolt Hex Key Size (mm) | 10 |
| M2 Base Thread (mm) |
3-M12x1.75 |
| N (in) | 0.53 |
| S (in) | 0.55 |
| Y Jaw Width (in) |
1.42 |

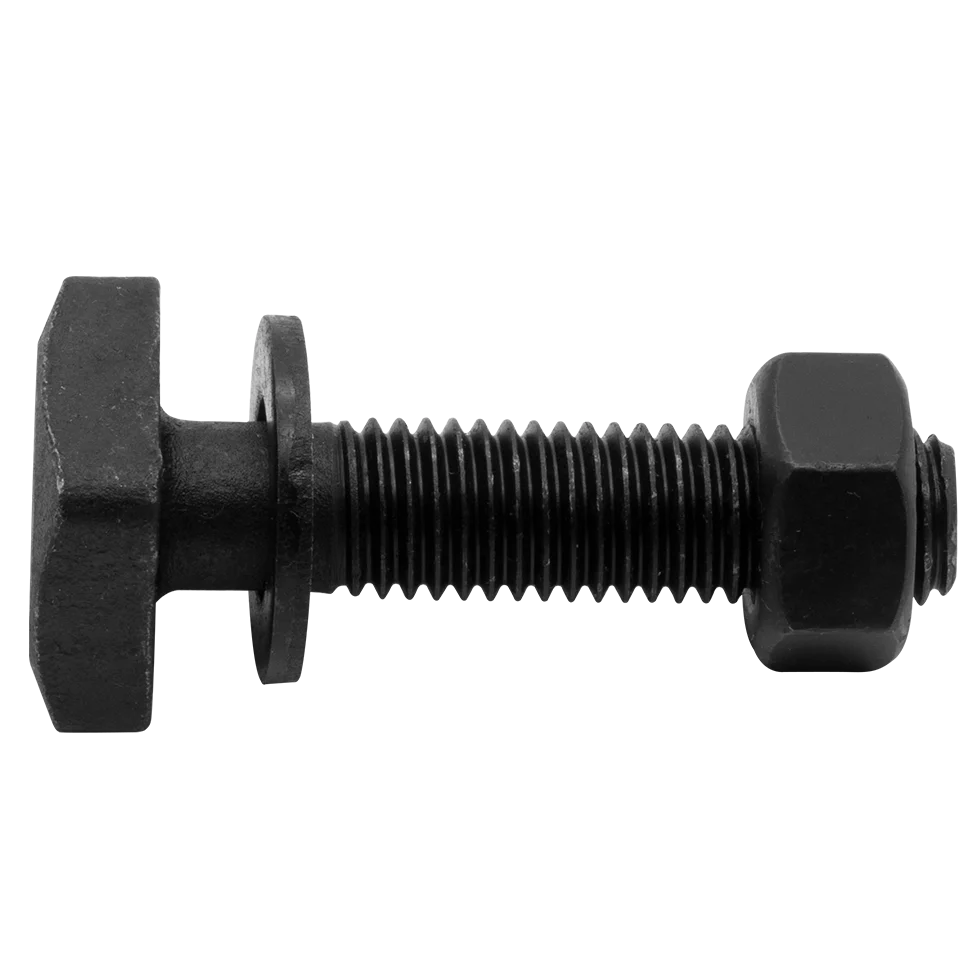

| Mounting Bolt Thread (mm) | M14 |
| Mounting Bolt Length (in) | 2.56 |
| Mounting Bolt Square Head Size (in) | 0.98 |
| Mounting Bolt Nut Wrench Size (in) | 0.87 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (Set) | TJ-SK3-250 |
| Hard Master Jaws (Set) | MJ-SK3-250 |
| Soft Top Jaws (Set) | STJ-SK3-250 |
| Spare Parts | |
| Scroll (1Pc) | SC-NB-250 |
| Pinion (1Pc) | PI-NB-250 |

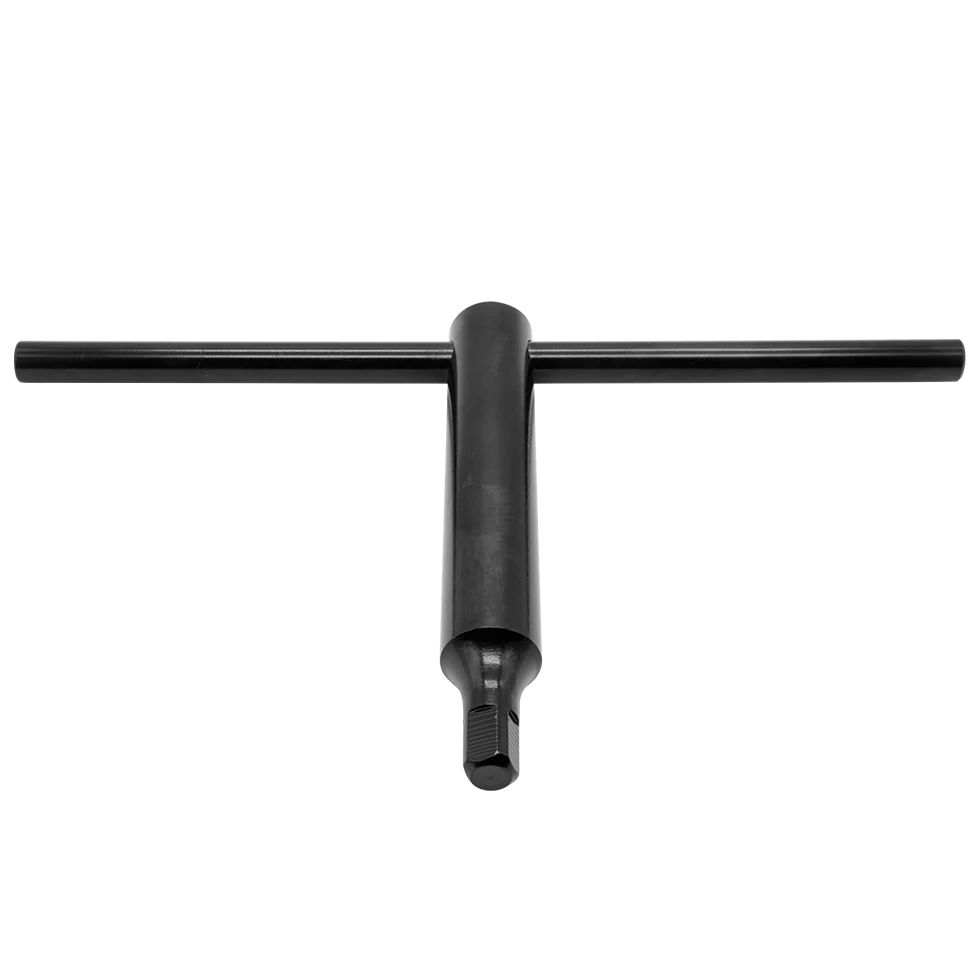

| Chuck Wrench (1Pc) |
W-NB-250 |
| Pinion Screw (1Pc) | PH-NB-250 |
