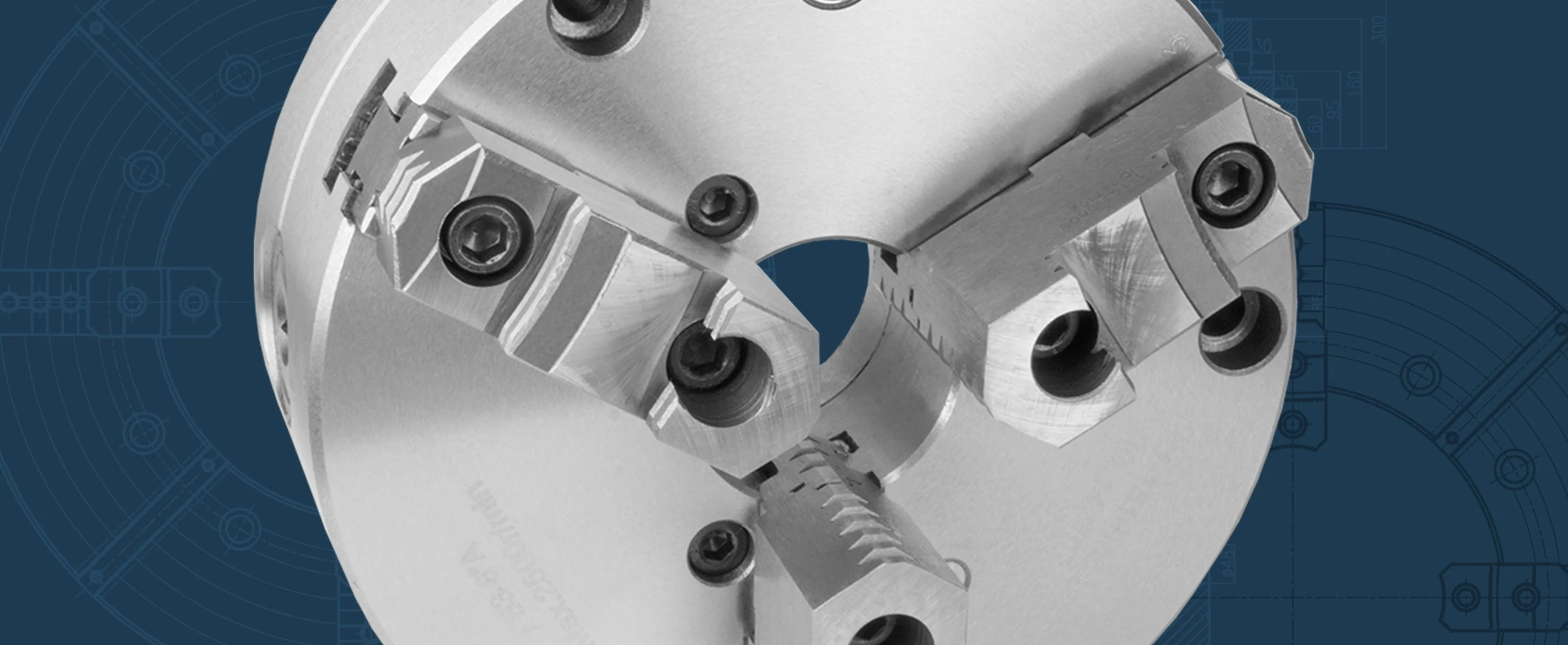

3-Jaw Adjustable Scroll Chuck 10" Cast-Iron Body, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Scroll-Adjustable |
| Chuck Mount | Adjustable |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 10 |
| Thru-Hole (in) | 2.992 |
| Gripping Range Min-Max (in) | .197 - 9.84 |
| Chuck T.I.R (in) | 0.0004 |
| Max RPM | 2000 |
| Material | Semi-Steel |
| Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 67.02 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Fine Adjustment Screws, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 10 |
| C (in) | 0.79 |
| d Hole Max (in) | 2.992 |
| E (in) | 5.7086 |
| H (in) | 3.504 |
| F (in) | 8.8189 |
| h Jaw Height (in) | 2.05 |
| M Mounting Bolt Thread | M12x1.75 x 3 |
| Mounting Bolt Qty | 3 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS3-250 |
| Hard Master Jaws (set) | MJ-PS3-250 |
| Soft Top Jaws (set) | STJ-PS1-250 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-315 |
| Scroll (1 pc) | SC-PS-250 |
| Pinion (1 pc) | PI-PO-250 |
| Pinion Sleeve (1 pc) | PS-P-250 |
| Half Ring (1 pc) | HR-P-250 |
| Fine Adjustment Screws (1 pc) | FS-PB-250 |
| Chuck Mounting Bolts (1 pc) | MB-PA-250 |
| Adapters | |
| Adapter Adjustable A5 | FLA-250A5 |
| Adapters Adjustable A6 | FLA-250A6 |
| Adapter Adjustable A8 | FLA-250A8 |
| Adapter Adjustable D5 | FLA-250D5 |
| Adapter Adjustable D6 | FLA-250D6 |
| Adapter Adjustable D8 | FLA-250D8 |
| Adapter Adjustable 2-3/8"-6 | FLA-250T6 |
| Adapter Adjustable L00 | FLA-250L00 |
| Adapter Adjustable L0 | FLA-250L0 |
| Adapter Adjustable L1 | FLA-250L1 |
| Baseplates | |
| Base Plates | F-BPA-250 |
| Base Plates | F-BPA-250H21 |
| Base Plates | F-BPA-250H31 |
