Product Information

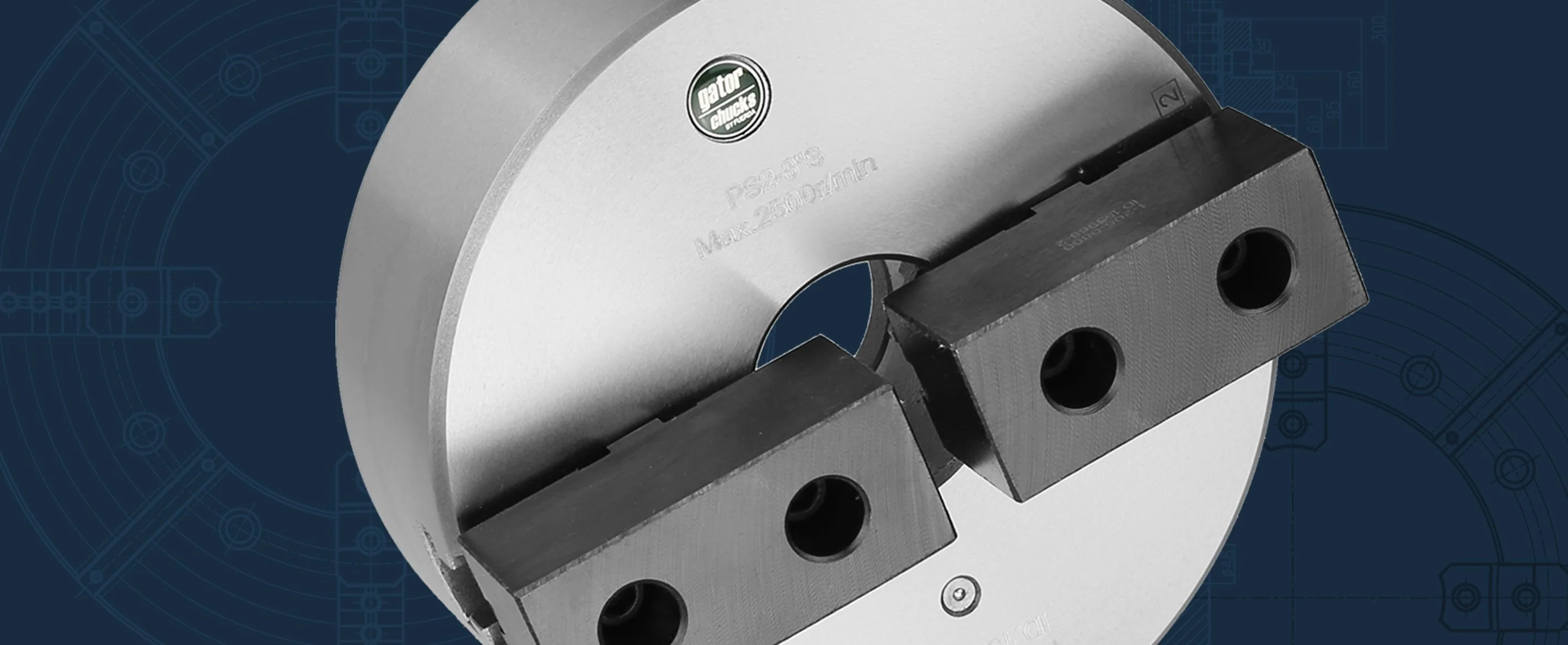

Title	2-Jaw Scroll Chuck, 6" Cast-Iron Body, Plain Back, 2 PC Soft Rev
Chuck Type	Scroll Self-Centering
Chuck Mount	Plain Back
Spindle Type	Requires Adapter
Chuck Dia (in)	6-1/4"
Thru-Hole (in)	1.6535
Gripping Range Min-Max (in)	0.12 - 6.30
Chuck T.I.R (in)	0.0012
Max RPM	3000
Material	Cast Iron
Jaws	2
Jaw Type	Soft Top Jaws
Weight Gross (lbs)	20.50
Includes	1 Set of Master and Soft Top Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys

Product Dimensions

D (in)	6-1/4"
F (in)	5.5118
E (H7)  (in)	4.9213
d Hole (in)	1.6535
C (in)	.1575
H  (in)	2.539
h (in)	1.709
M Mounting Bolt Thread (mm)	M10x1.5
M Mounting Bolt Length (in)	0.98
Mounting Bolt Qty	6

Crossover to Other Brands

Bison

7-830-0600

Accessories

Jaws
Hard Master Jaws (set)	MJ-PS2-160
Soft Top Jaws (set)	STJ-PS2-160
Spare Parts
Chuck Wrench (1 pc)	W-P-200
Scroll (1 pc)	SC-PS-160
Pinion (1 pc)	PI-PS-160
Pinion Screw (1 pc)	PH-P-160
Chuck Mounting Bolts (1 pc)	MB-BS-160
Adapters
FM Machined Adapters A5	FM-160A5
FM Machined Adapters D3	FM-160D3
FM Machined Adapters D4	FM-160D4
FM Machined Adapters D5	FM-160D5
FM Machined Adapters L00	FM-160L00
FM Machined Adapters L0	FM-160L0
SM Semi-Finished Adapters A5	SM-160A5
SM Semi-Finished Adapters D1-3	SM-160D3
SM Semi-Finished Adapters D1-4	SM-160D4
SM Semi-Finished Adapters D1-5	SM-160D5
SM Semi-Finished Adapters L00	SM-160L00
SM Semi-Finished Adapters L0	SM-160L0
SM Semi-Finished Adapters 1-1/2-8UN-2B (T2)	SM-160T2
SM Semi-Finished Adapters 2-3/16-10 Hardinge (T4)	SM-160T4
SM Semi-Finished Adapters 2-1/4-8UN-2B (T5)	SM-160T5
